ECH8315-TL-H - onsemi

Description: Low On-Resistance; 4.0V drive; ESD Diode-Protected Gate; RoHS compliance

Download ECH8315-TL-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

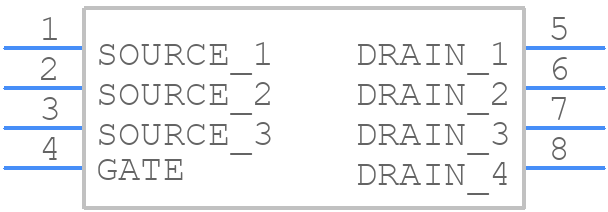

ECH8315-TL-H - onsemi - PCB symbol
click to zoom
PCB Footprints
ECH8315-TL-H - onsemi PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SOT28FL/ECH8 CASE 318BF ISSUE O
click to zoom
3D Models
ECH8315-TL-H - onsemi - 3D model - SO Transistor Flat Lead - SOT28FL/ECH8 CASE 318BF ISSUE O
click to zoom

ECH8315-TL-H Details

  • Manufacturer Part Number:

    ECH8315-TL-H

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-28FL / ECH8

  • Pin Count:

    8

  • Manufacturer Package Code:

    318BF

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Configuration:

    SINGLE

  • Drain Current-Max (ID):

    7.5 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-609 Code:

    e6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Operating Temperature-Max:

    150 °C

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.5 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Time@Peak Reflow Temperature-Max (s):

    30

ECH8315-TL-H Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material to improve heat transfer.
  • The maximum allowed voltage on the input pins is 5.5V, exceeding this may cause damage to the device. Ensure that the input voltage is within the recommended operating range.
  • Yes, the device is rated for operation in humid environments, but it's essential to follow proper PCB design and assembly guidelines to prevent moisture-related issues.
  • Check the input voltage, ensure proper power sequencing, and verify that the enable pin is properly configured. Also, check for any short circuits or damage to the device or PCB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECH8315-TL-H Overview

Use the download button to access the ECH8315-TL-H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECH83, or try a keyword search, such as Power Field-Effect Transistors
