ECH8690-TL-H - onsemi

Description: On-State Resistance  N-Channel: RDS(on)1=42 mΩ (typ.)  P-channel: RDS(on)1=73 mΩ (typ.); Protection diode in; 4V drive; Nch+Pch MOSFET

Download ECH8690-TL-H Model
Schematic
symbols

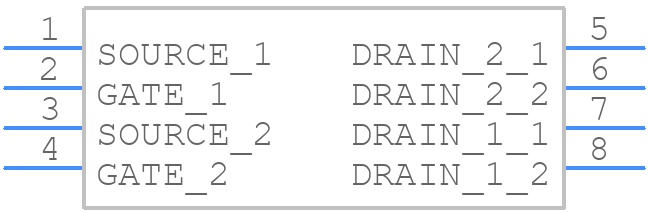

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ECH8690-TL-H - onsemi PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - ECH8690-TL-H
click to zoom
3D Models
ECH8690-TL-H - onsemi  - 3D model - SO Transistor Flat Lead - ECH8690-TL-H
click to zoom

ECH8690-TL-H Details

  • Manufacturer Part Number:

    ECH8690-TL-H

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-28FL / ECH8

  • Pin Count:

    8

  • Manufacturer Package Code:

    318BF

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Drain Current-Max (ID):

    4.7 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-609 Code:

    e6

  • Moisture Sensitivity Level:

    1

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.8 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Time@Peak Reflow Temperature-Max (s):

    30
