ECL05US05-E - XP POWER

Description: Switching Power Supplies PSU, 5W, MINI, PCB MOUNT, ENCAPS.

Download ECL05US05-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ECL05US05-E - XP POWER - PCB symbol
click to zoom
PCB Footprints

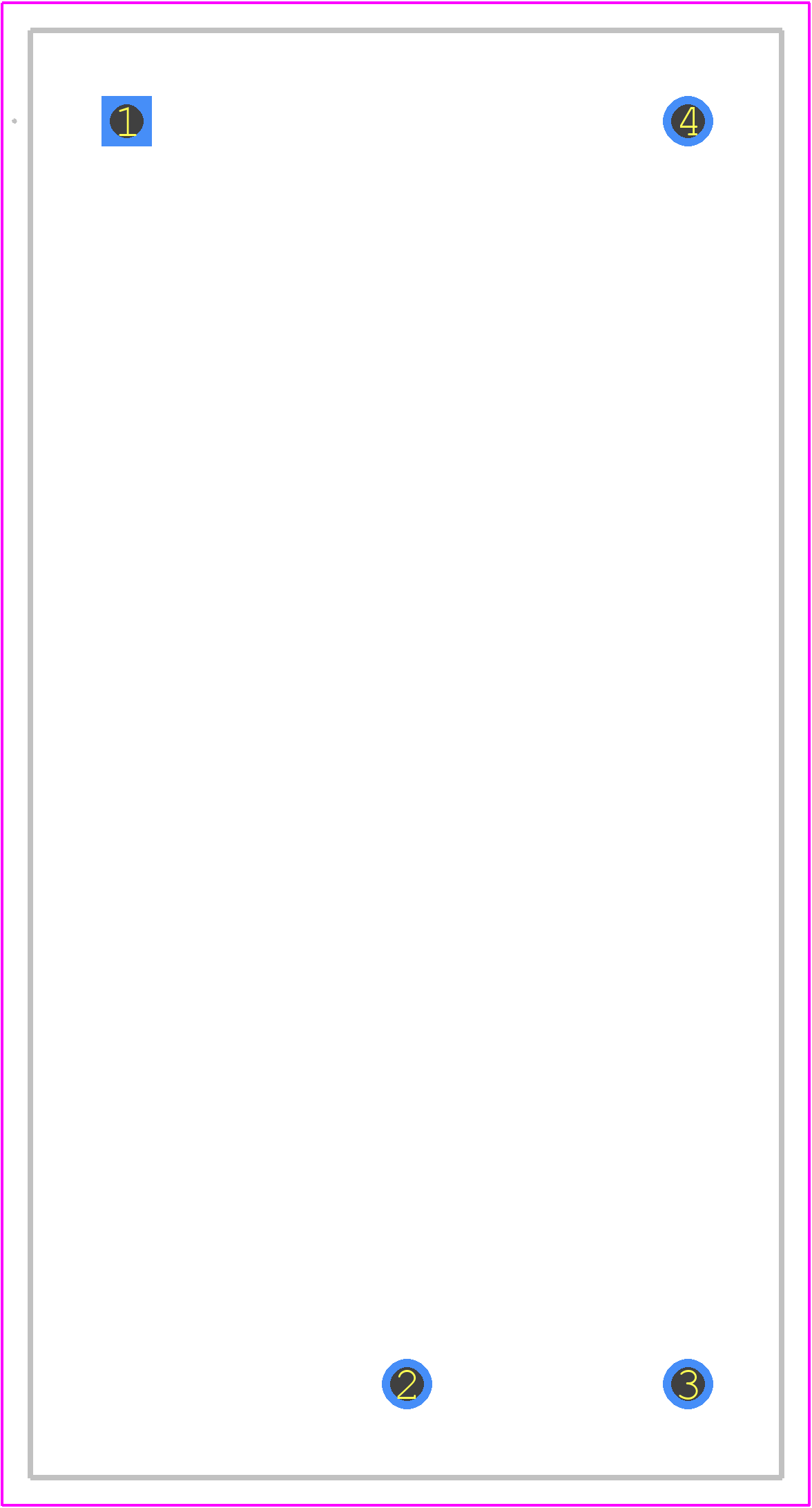

ECL05US05-E - XP POWER PCB footprint - Other - Other - ECL05US05-E-1
click to zoom
3D Models
ECL05US05-E - XP POWER - 3D model - Other - ECL05US05-E-1
click to zoom

ECL05US05-E Details

  • Manufacturer Part Number:

    ECL05US05-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CSA, EN, IEC, UL

  • Efficiency (Main Output):

    75%

  • Input Voltage-Max:

    264 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    115 V

  • Length:

    52.4 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Nom:

    5 V

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE

  • Ripple Voltage (Main Out):

    0.01768 Vrms

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    5 W

  • Width:

    27.2 mm

ECL05US05-E Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the ECL05US05-E is 10uF. Exceeding this value may affect the stability of the output voltage.
  • The ECL05US05-E is rated for operation up to 80°C ambient temperature. However, derating may be necessary for temperatures above 60°C. Consult the datasheet for derating curves.
  • To ensure EMC, follow proper PCB layout and grounding practices, and consider adding external filtering components as needed. The ECL05US05-E meets EN 55022 Class B and FCC Part 15 Class B emissions standards.
  • The recommended input fuse rating for the ECL05US05-E is 1A slow-blow or 2A fast-acting. However, the actual fuse rating may vary depending on the specific application and input voltage.
  • Yes, you can parallel multiple ECL05US05-E modules to increase output current. However, ensure that the modules are identical and properly synchronized to avoid oscillations and instability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECL05US05-E Overview

Use the download button to access the ECL05US05-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECL05, or try a keyword search, such as Power Supply Modules
