OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; OVER LOAD
Seated Height-Max:
23.5 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
5 W
Trim/Adjustable Output:
NO
Warm-up Time:
0.017 s
Width:
27.2 mm
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECL05US09-E Overview

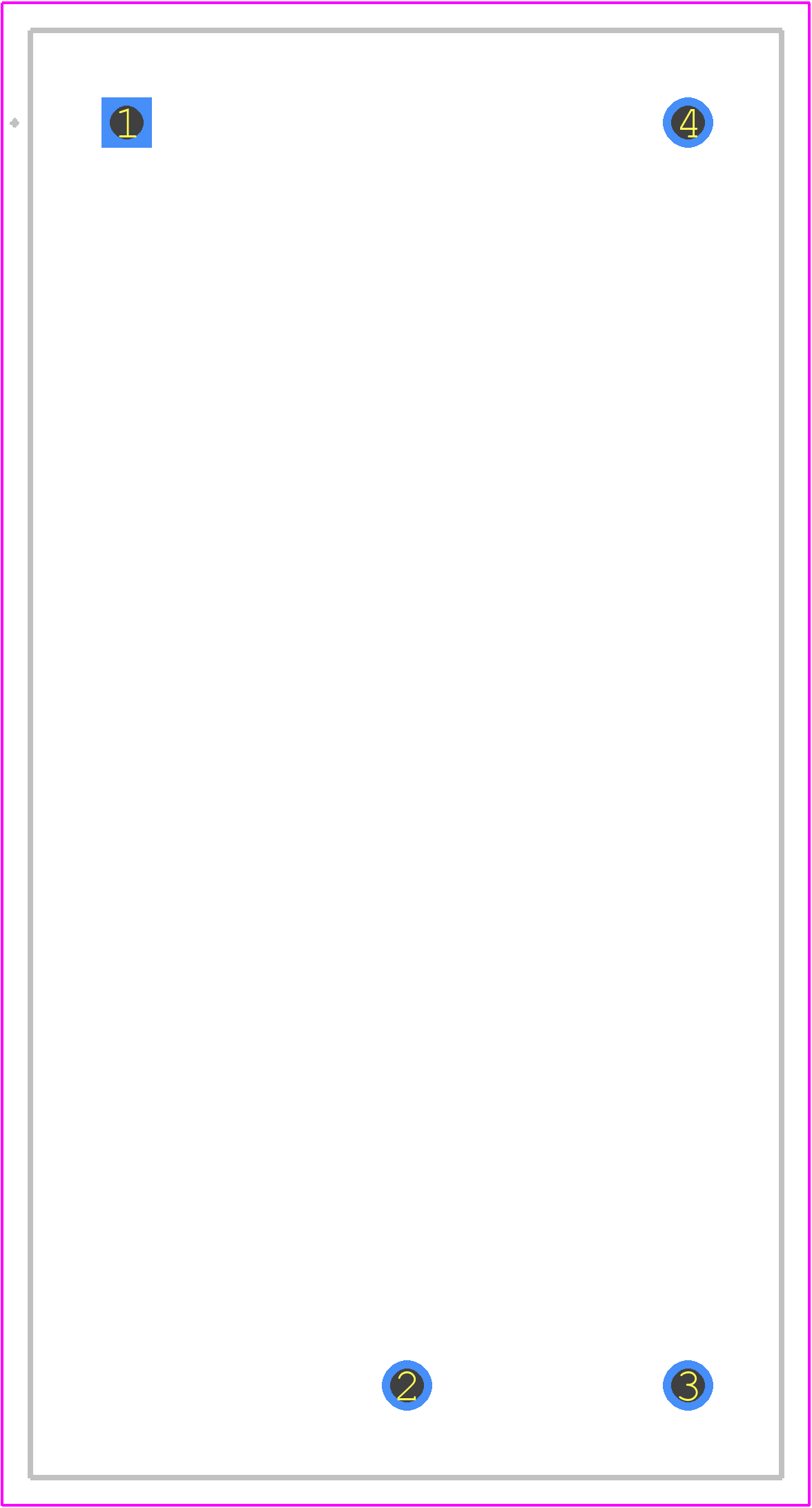

Use the download button to access the ECL05US09-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECL05,
or try a keyword search, such as Power Supply Modules
