ECL10US12-P footprint, schematic symbol and 3D model by XP POWER

Symbol

click to zoom

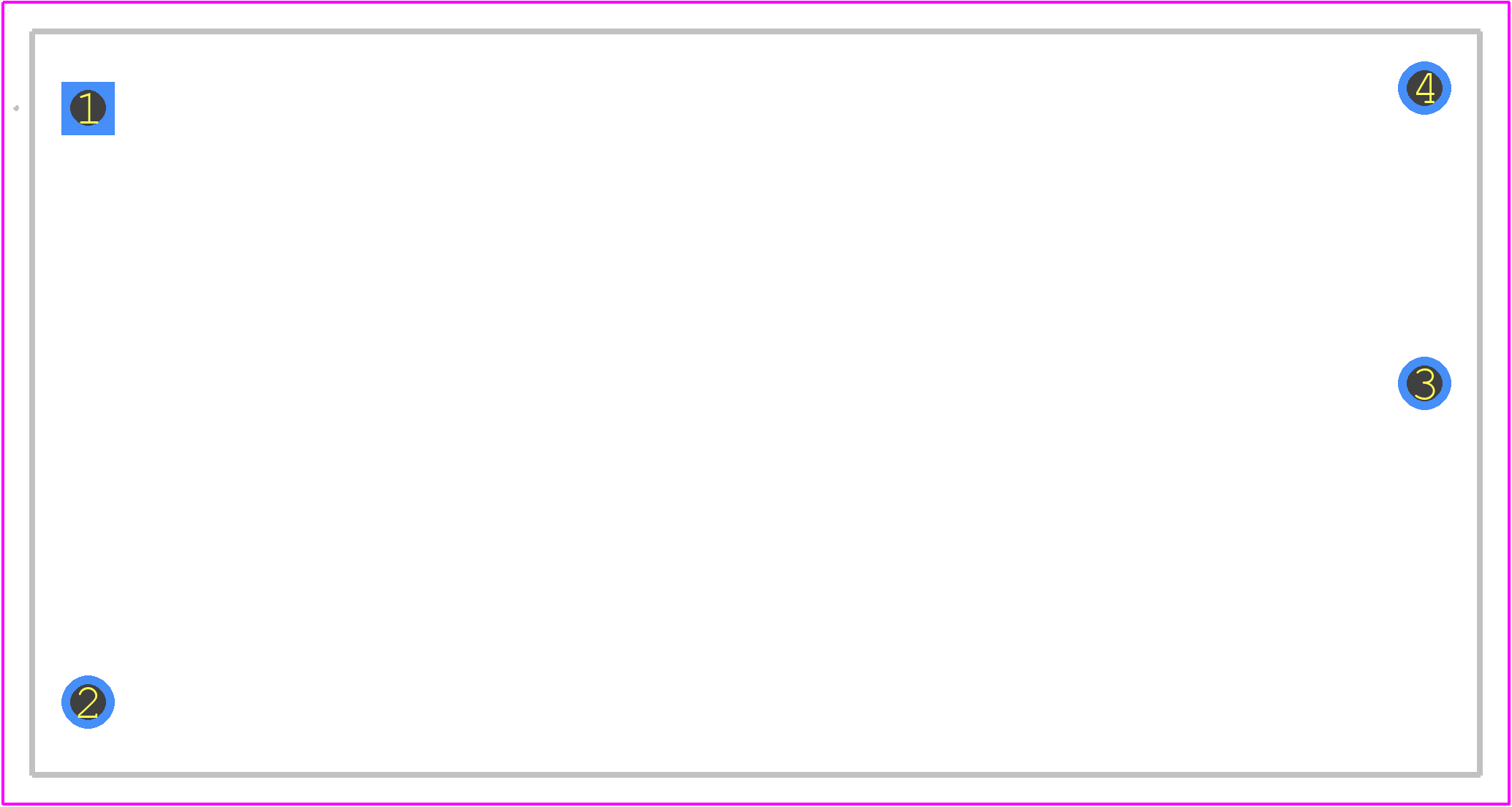

PCB Footprints

ECL10US12-P - XP POWER PCB footprint - Other - Other - ECL10US12-P-1

click to zoom

3D Models

ECL10US12-P - XP POWER - 3D model - Other - ECL10US12-P-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ECL10US12-P
Part Number ECL10US12-P
Manufacturer XP POWER
Pin Count 4
Part Category Power Supply
Package Category Other
Footprint Name Other - ECL10US12-P-1
Released Date Sep 19, 2024
Last Modified Date Sep 19, 2024 5:38 AM UTC
Pinout / Pin List Click Here (Member Only)

ECL10US12-P Details

Manufacturer Part Number:
ECL10US12-P
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
6
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CSA, EN, IEC, UL
Efficiency (Main Output):
78%
Input Voltage-Max:
264 V
Input Voltage-Min:
85 V
Input Voltage-Nom:
115 V
JESD-30 Code:
R-XXMA-X5
Length:
49.5 mm
Line Regulation-Max:
0.5%
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
5
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-20 °C
Output Current-Max:
0.83 A
Output Voltage-Max:
12.6 V
Output Voltage-Min:
11.4 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
XMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Protections:
OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; OVER LOAD
Ripple Voltage (Main Out):
0.04242 Vrms
Seated Height-Max:
22.9 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
UNSPECIFIED
Terminal Position:
UNSPECIFIED
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
10 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.017 s
Width:
25.4 mm

ECL10US12-P Frequently Asked Questions (FAQs)

The maximum capacitance load for the ECL10US12-P is 0.1uF. Exceeding this value may affect the stability of the output voltage.
While the ECL10US12-P is rated for operation up to 80°C, it's recommended to derate the output power by 2.5% per degree above 60°C to ensure reliable operation.
The ECL10US12-P meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, it's essential to review the specific certification requirements for your application and ensure the module is used within its specified ratings.
To minimize electromagnetic interference (EMI) and ensure reliable operation, it's recommended to follow XP Power's recommended PCB layout guidelines, which include keeping the input and output tracks separate, using a solid ground plane, and minimizing track lengths.
While it's technically possible to parallel multiple ECL10US12-P modules, it's not recommended as it may lead to uneven current sharing and reduced reliability. Instead, consider using a higher-power module or consulting with XP Power's application engineers for custom solutions.

Trust Checks

Community Provided

System Verified

Community Approved

ECL10US12-P Overview

Use the download button to access the ECL10US12-P schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ECL10, or try a keyword search, such as Power Supply Modules
