ECLAMP2374P.TCT - SEMTECH

Description: ESD Protection Diodes / TVS Diodes ESD/EMI PROT FOR COLOR LCD INT

Download ECLAMP2374P.TCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

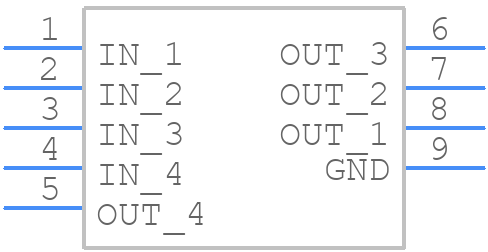

ECLAMP2374P.TCT - SEMTECH - PCB symbol
click to zoom
PCB Footprints
ECLAMP2374P.TCT - SEMTECH PCB footprint - Other - Other - ECLAMP2374P.TCT-1
click to zoom
3D Models
ECLAMP2374P.TCT - SEMTECH - 3D model - Other - ECLAMP2374P.TCT-1
click to zoom

ECLAMP2374P.TCT Details

  • Manufacturer Part Number:

    ECLAMP2374P.TCT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SLP2116P8-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    6.79

  • Attenuation Frequency-Max:

    2500 MHz

  • Attenuation@Freq-Max:

    30 dB

  • Capacitance:

    20 µF

  • DC Resistance-Max:

    115 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.65 mm

  • JESD-609 Code:

    e4

  • Length:

    2.2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Material:

    PLASTIC

  • Packing Method:

    TAPE AND REEL

  • Rated Voltage:

    5 V

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Width:

    1.7 mm

ECLAMP2374P.TCT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize crosstalk.
  • Ensure the input voltage (VIN) is within the recommended range (2.5V to 5.5V) and the bias voltage (VBIAS) is set to 1.65V ± 5% for optimal performance.
  • The ECLAMP2374P.TCT can handle surge currents up to 30A for 100ns, but it's recommended to limit the surge current to 10A for 100ns to ensure device reliability.
  • The optimal value for COUT depends on the specific application. A general guideline is to use a 10uF to 22uF ceramic capacitor with an ESR of 100mΩ or less.
  • The recommended operating temperature range for the ECLAMP2374P.TCT is -40°C to 125°C, but it's essential to ensure the device is within the specified temperature range for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECLAMP2374P.TCT Overview

Use the download button to access the ECLAMP2374P.TCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECLAM, or try a keyword search, such as Data Line Filters
