4 X 1.60 MM, 0.58 MM HEIGHT, ROHS COMPLIANT PACKAGE-16
Pin Count:
16
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8541.10.00.50
Factory Lead Time:
13 Weeks
Manufacturer:
Semtech Corporation
YTEOL:
6.2
Breakdown Voltage-Max:
10 V
Breakdown Voltage-Min:
6 V
Breakdown Voltage-Nom:
8 V
Configuration:
COMPLEX
Diode Element Material:
SILICON
Diode Type:
TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 Code:
R-PDSO-N16
JESD-609 Code:
e4
Moisture Sensitivity Level:
1
Number of Elements:
7
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity:
BIDIRECTIONAL
Qualification Status:
Not Qualified
Rep Pk Reverse Voltage-Max:
5 V
Surface Mount:
YES
Technology:
AVALANCHE
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
NO LEAD
Terminal Position:
DUAL
ECLAMP2410P.TCT Frequently Asked Questions (FAQs)
A good PCB layout for the ECLAMP2410P.TCT involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the protected circuit. Additionally, it's recommended to use a common ground point for the input and output grounds.
To choose the right TVS diode, consider the maximum voltage and current requirements of your application, as well as the desired level of protection. The ECLAMP2410P.TCT is a 24V TVS diode, so it's suitable for applications with a maximum voltage of 24V. You should also consider the power rating, response time, and clamping voltage of the TVS diode.
A TVS (Transient Voltage Suppressor) diode is designed to protect against high-voltage transients, while a Zener diode is used for voltage regulation. TVS diodes have a faster response time and can handle higher currents than Zener diodes. The ECLAMP2410P.TCT is a TVS diode, designed to protect against voltage transients and spikes.
The ECLAMP2410P.TCT is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to consider the derating of the device's power rating at higher temperatures to ensure reliable operation.
To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point compatible with the device's package. The ECLAMP2410P.TCT is available in a SOT23 package, which requires a peak reflow temperature of 260°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECLAMP2410P.TCT Overview

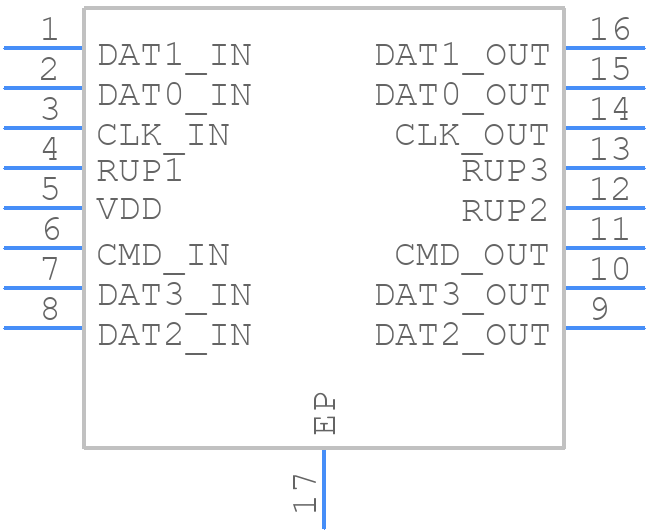

Use the download button to access the ECLAMP2410P.TCT schematic symbol, PCB footprint, and 3D model.
