ECLAMP2515K.TCT - SEMTECH

Description: Mixed Technology TVS Device 6 Circuit Surface Mount SLP3313P16T

Download ECLAMP2515K.TCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

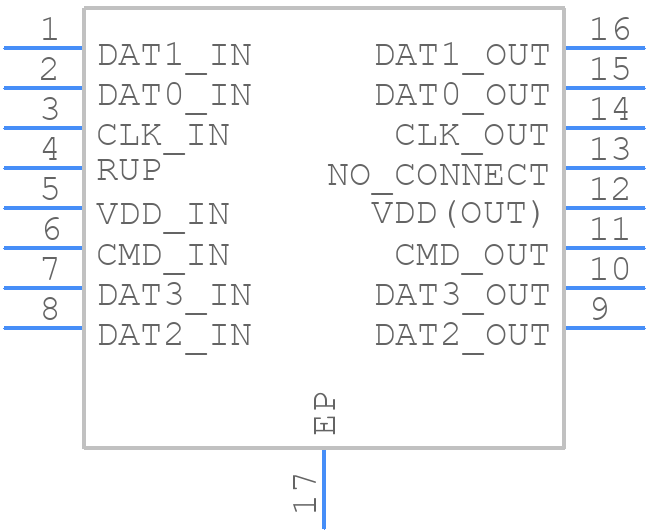

ECLAMP2515K.TCT - SEMTECH - PCB symbol
click to zoom
PCB Footprints
ECLAMP2515K.TCT - SEMTECH PCB footprint - Small Outline No-lead - Small Outline No-lead - 16-Pin SON
click to zoom
3D Models
ECLAMP2515K.TCT - SEMTECH - 3D model - Small Outline No-lead - 16-Pin SON
click to zoom

ECLAMP2515K.TCT Details

  • Manufacturer Part Number:

    ECLAMP2515K.TCT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    7

  • Approvals:

    IEC

  • Capacitance:

    22 µF

  • DC Resistance-Max:

    52 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.5 mm

  • JESD-609 Code:

    e4

  • Length:

    3.3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Voltage:

    5 V

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Width:

    1.3 mm

ECLAMP2515K.TCT Frequently Asked Questions (FAQs)

  • The ECLAMP2515K.TCT is designed to withstand high surge currents up to 500A (8/20μs waveform) without performance degradation or damage.
  • The ECLAMP2515K.TCT has integrated ESD protection diodes that can withstand ESD pulses up to ±30kV contact discharge and ±30kV air discharge, exceeding the requirements of IEC 61000-4-2.
  • Yes, the ECLAMP2515K.TCT is suitable for protecting both digital and analog signal lines, including HDMI, DisplayPort, and USB interfaces, due to its low capacitance and high-frequency performance.
  • The ECLAMP2515K.TCT operates over a wide temperature range of -40°C to +125°C, making it suitable for use in industrial, automotive, and consumer electronics applications.
  • The ECLAMP2515K.TCT has a low capacitance of 0.5pF and a low inductance of 0.5nH, which minimizes signal distortion and attenuation, ensuring that the protected signal remains intact and unaffected.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECLAMP2515K.TCT Overview

Use the download button to access the ECLAMP2515K.TCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECLAM, or try a keyword search, such as Data Line Filters
