Technical Content
Part Image

ECLAMP2522P.TCT - SEMTECH

Description: USB Upstream Port Filter & TVS For EMI Filtering & ESD Protection

Download ECLAMP2522P.TCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

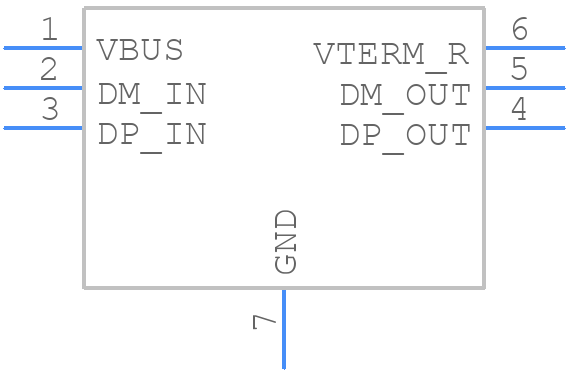

ECLAMP2522P.TCT - SEMTECH - PCB symbol
click to zoom
PCB Footprints
ECLAMP2522P.TCT - SEMTECH PCB footprint - Small Outline No-lead - Small Outline No-lead - QFN-7
click to zoom
3D Models
ECLAMP2522P.TCT - SEMTECH - 3D model - Small Outline No-lead - QFN-7
click to zoom

ECLAMP2522P.TCT Details

  • Manufacturer Part Number:

    ECLAMP2522P.TCT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SLP1616P6, 6 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    7.39

  • Approvals:

    UL; IEC

  • Capacitance:

    40 µF

  • DC Resistance-Max:

    24 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.65 mm

  • JESD-609 Code:

    e4

  • Length:

    1.7 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE AND REEL

  • Rated Voltage:

    5.25 V

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Width:

    1.7 mm

ECLAMP2522P.TCT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize crosstalk.
  • Ensure the input voltage (VIN) is within the recommended range (2.5V to 5.5V) and the bias voltage (VBIAS) is set to 1.65V ± 5% for optimal performance.
  • The ECLAMP2522P.TCT can handle surge currents up to 30A for 100ns, but it's recommended to limit the surge current to 10A for 100ns to ensure device reliability.
  • Yes, the ECLAMP2522P.TCT is rated for operation up to 125°C, but ensure proper thermal management and derate the device according to the datasheet's thermal derating curve.
  • Check the input voltage, bias voltage, and output voltage for proper operation. Verify the PCB layout and ensure proper thermal management. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECLAMP2522P.TCT Overview

Use the download button to access the ECLAMP2522P.TCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECLAM, or try a keyword search, such as Data Line Filters
