ECLB40W-24S12 - Cincon

Description: Isolated DC/DC Converters DC-DC Converter, 40 Watt, 4:1 Input Range, 9-36VDC Input, 12VDC Output, 1500VDC min. Isolation, Aluminum with Non-Conductive Base, 2.05x1.20x0.40 6-Side Shield Metal Case, Thru-Hole

Download ECLB40W-24S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

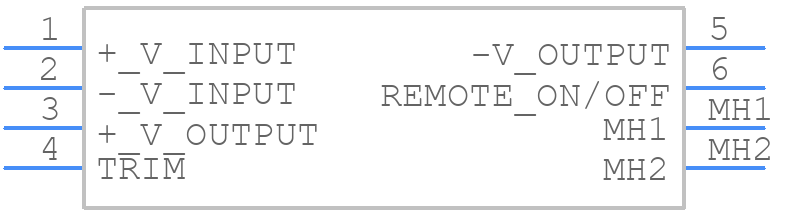

ECLB40W-24S12 - Cincon - PCB symbol
click to zoom
PCB Footprints

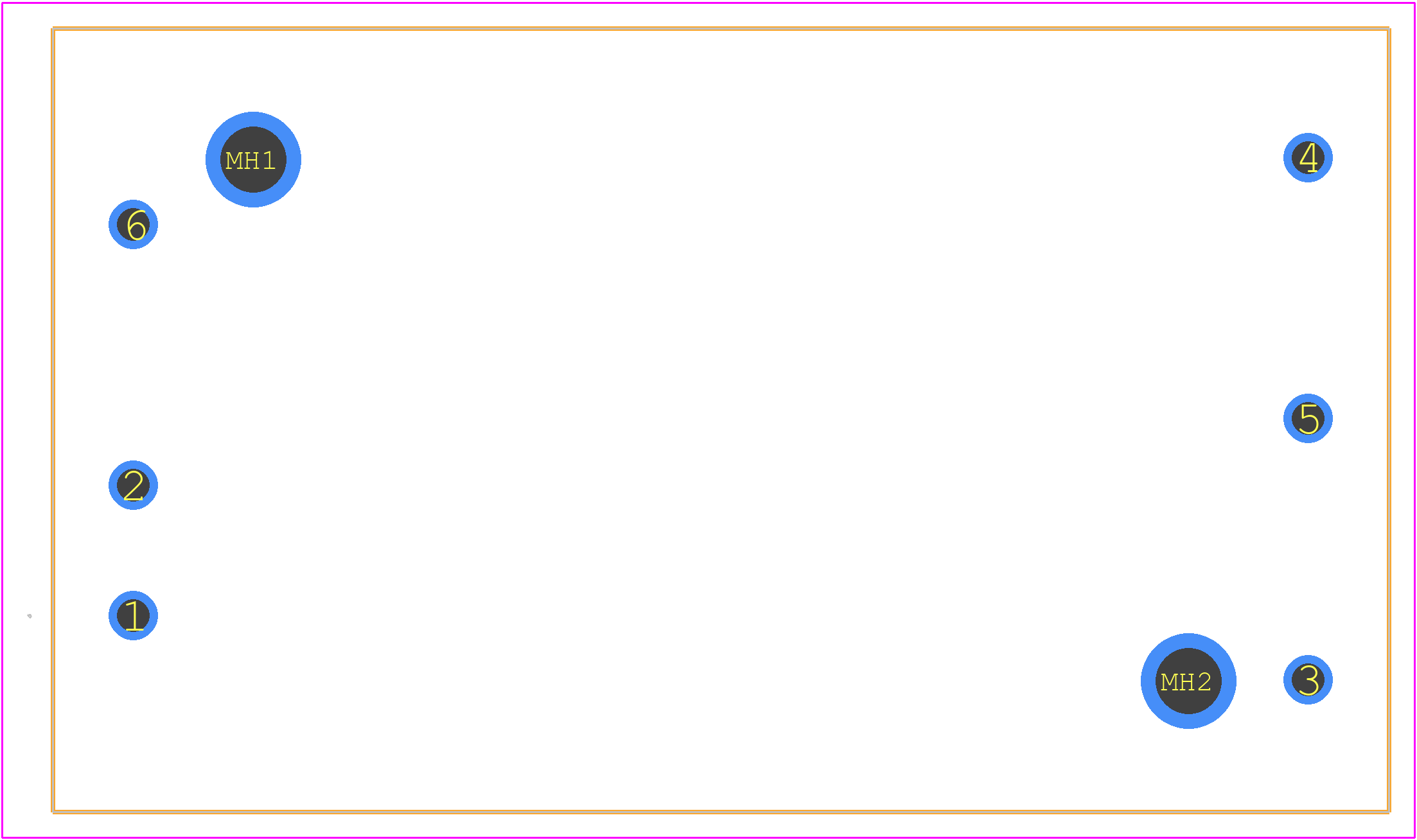

ECLB40W-24S12 - Cincon PCB footprint - Other - Other - ECLB40W-24S12-1
click to zoom
3D Models
ECLB40W-24S12 - Cincon - 3D model - Other - ECLB40W-24S12-1
click to zoom

ECLB40W-24S12 Details

  • Manufacturer Part Number:

    ECLB40W-24S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cincon Electronics Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, EN, IEC, UL

  • Efficiency (Main Output):

    91%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-MDMA-P6

  • Length:

    52 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.333 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,6LEAD,1.8

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER CURRENT, OVER VOLTAGE, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.053 Vrms

  • Screening Level:

    EN/IEC/UL 62368-1

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    40 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.015 s

  • Width:

    30.5 mm

ECLB40W-24S12 Frequently Asked Questions (FAQs)

  • The recommended PCB layout should ensure good thermal conductivity and minimal thermal resistance. A multi-layer PCB with thermal vias and a large copper area for heat dissipation is recommended. Additionally, a heat sink or thermal pad can be used to further improve thermal management.
  • The ECLB40W-24S12 has built-in input voltage transient protection, which can withstand voltage spikes up to 30V for 100ms. However, it's still recommended to add external input voltage transient protection devices, such as TVS diodes, to ensure the converter's reliability in harsh environments.
  • The maximum capacitive load that the ECLB40W-24S12 can handle is 2200uF. Exceeding this value may cause instability or oscillation in the output voltage. It's recommended to derate the capacitive load to ensure reliable operation.
  • Yes, the ECLB40W-24S12 can be used in a redundant or parallel configuration to achieve higher power ratings or improved reliability. However, it's essential to ensure that the converters are properly synchronized and configured to avoid oscillation or instability.
  • The typical efficiency of the ECLB40W-24S12 is around 85-90% at full load and 25°C. Efficiency may vary depending on the load and temperature. It's recommended to consult the datasheet or contact Cincon Electronics Corporation for more detailed efficiency data.
