OVER CURRENT, OVER VOLTAGE, SHORT CIRCUIT PROTECTION
Ripple Voltage (Main Out):
0.053025 Vrms
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
60 W
Trim/Adjustable Output:
NO
Warm-up Time:
0.03 s
Width:
30.5 mm
ECLB60W-24D12 Frequently Asked Questions (FAQs)
The recommended PCB layout and thermal design can be obtained by contacting Cincon Electronics Corporation's technical support team or by referring to their application notes. A good thermal design should ensure that the device is mounted on a multi-layer PCB with a solid ground plane, and that the thermal vias are connected to the ground plane to dissipate heat effectively.
To ensure reliability and longevity, it is essential to follow the recommended operating conditions, derating, and thermal management guidelines provided in the datasheet. Additionally, implementing proper input and output filtering, surge protection, and overvoltage protection can help prevent damage to the device.
The ECLB60W-24D12 is a 60W DC-DC converter suitable for a wide range of applications, including industrial control systems, telecommunications, datacom, and medical devices. It is particularly useful in applications requiring a high-power density, low noise, and high reliability.
Yes, the ECLB60W-24D12 can be used in a redundant or parallel configuration to achieve higher power ratings or to provide redundancy in critical applications. However, it is essential to consult with Cincon Electronics Corporation's technical support team to ensure that the configuration is properly designed and implemented.
The ECLB60W-24D12 is certified to meet various agency standards, including UL60950-1, EN60950-1, and IEC60950-1. It also complies with RoHS and REACH directives. For specific certification and compliance information, please contact Cincon Electronics Corporation's technical support team.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECLB60W-24D12 Overview

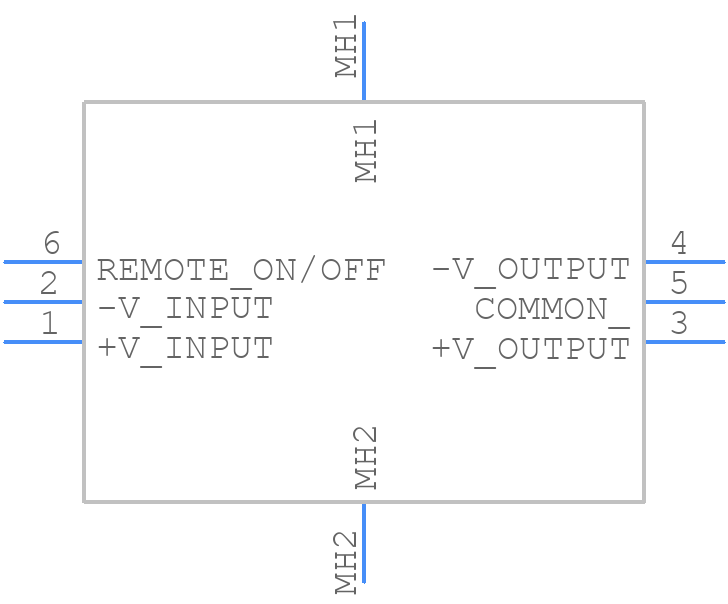

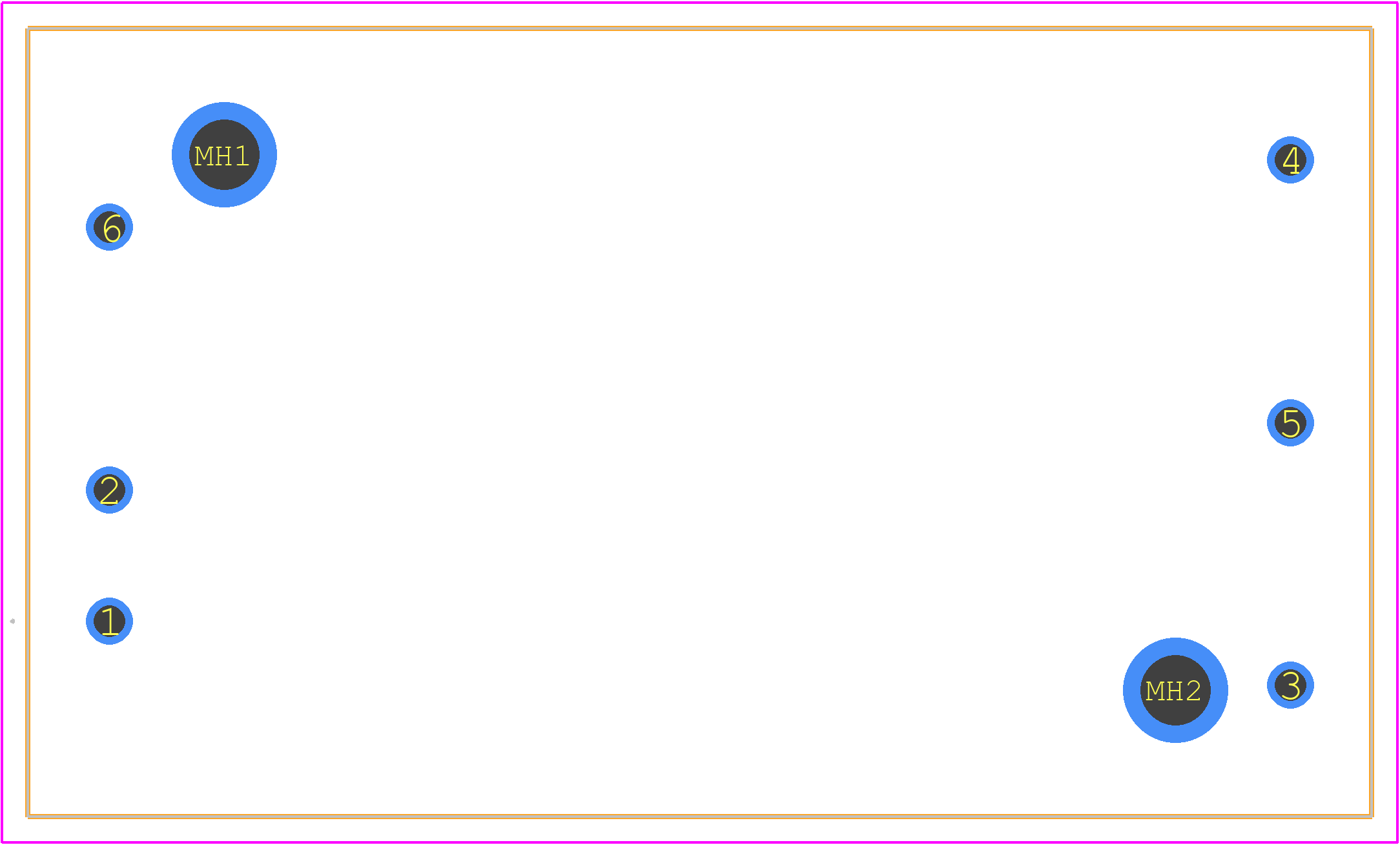

Use the download button to access the ECLB60W-24D12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECLB6,
or try a keyword search, such as Power Supply Modules
