OVER CURRENT, OVER VOLTAGE, SHORT CIRCUIT PROTECTION
Ripple Voltage (Main Out):
0.053025 Vrms
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
60 W
Trim/Adjustable Output:
NO
Warm-up Time:
0.03 s
Width:
30.5 mm
ECLB60W-24D15 Frequently Asked Questions (FAQs)
The recommended PCB layout for optimal thermal performance involves placing the converter on a multi-layer board with a solid ground plane, using thermal vias to dissipate heat, and keeping the input and output capacitors close to the converter.
To ensure reliable start-up and shutdown, it is recommended to add a soft-start circuit to limit the inrush current, and to use a voltage supervisor to monitor the input voltage and ensure that the converter is enabled only when the input voltage is within the specified range.
The derating curves for the converter's output power and efficiency at high temperatures can be obtained from the manufacturer or through thermal simulation and testing. Typically, the output power and efficiency will decrease as the temperature increases, and the converter may need to be derated to prevent overheating.
To troubleshoot common issues, it is recommended to use an oscilloscope to monitor the input and output voltages, and to check the converter's protection circuits and fault indicators. The manufacturer's application notes and troubleshooting guides can also provide valuable information and guidance.
The recommended input and output filtering components to reduce EMI and noise include input capacitors with low ESR, output capacitors with low ESL, and common-mode chokes or ferrite beads to filter out high-frequency noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECLB60W-24D15 Overview

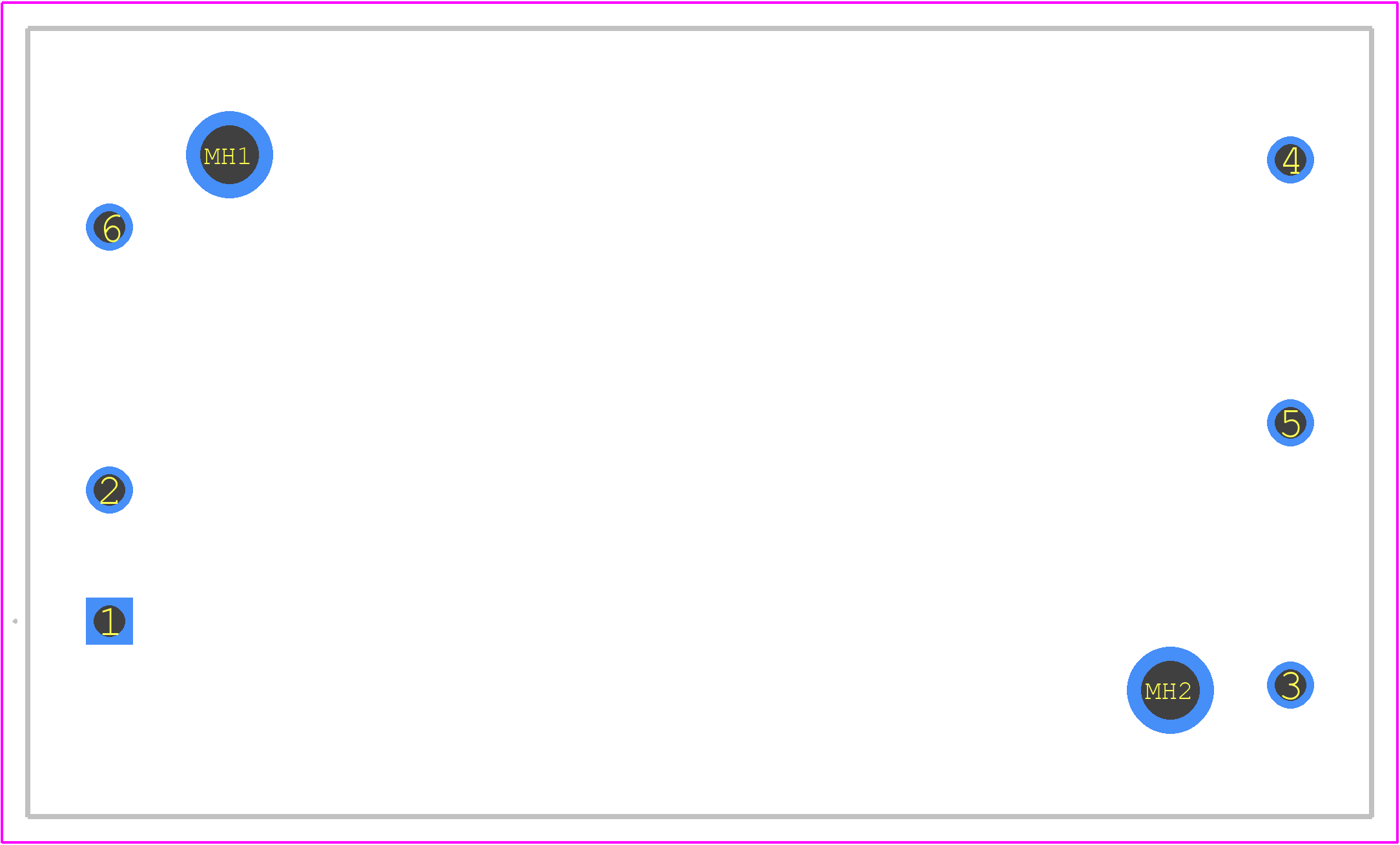

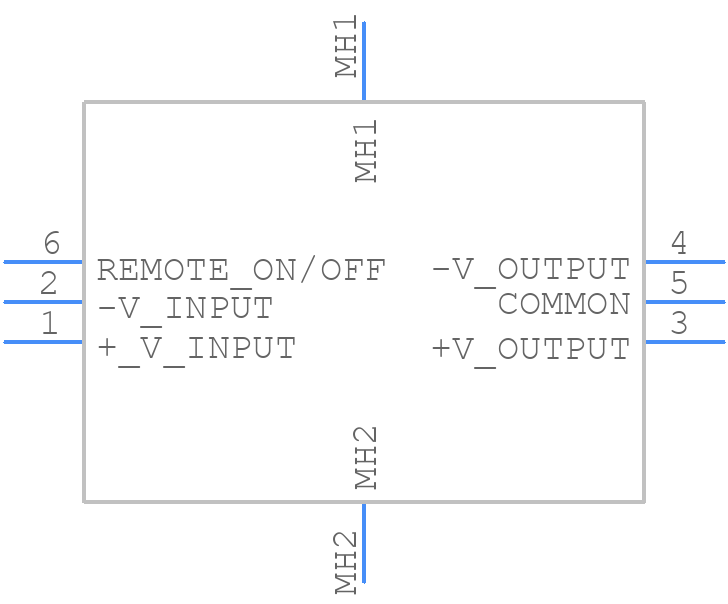

Use the download button to access the ECLB60W-24D15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECLB6,
or try a keyword search, such as Power Supply Modules
