OVER CURRENT, OVER VOLTAGE, SHORT CIRCUIT PROTECTION
Ripple Voltage (Main Out):
0.053025 Vrms
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
60 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.03 s
Width:
30.5 mm
ECLB60W-24S15 Frequently Asked Questions (FAQs)
The recommended PCB layout should ensure good thermal conductivity and minimal thermal resistance. A multi-layer PCB with thermal vias and a heat sink is recommended. The device should be placed on a thick copper layer with good thermal conductivity. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink.
To ensure reliable operation and minimize the risk of overheating, it is essential to follow the recommended operating conditions, including input voltage, output current, and ambient temperature. The device should be operated within the specified temperature range, and adequate cooling should be provided. Additionally, the device should be protected from overvoltage, undervoltage, and overcurrent conditions.
The ECLB60W-24S15 is designed to meet the EMI and EMC requirements of various regulatory bodies. However, to ensure compliance, it is essential to follow proper PCB layout and design practices, such as using a shielded enclosure, minimizing loop areas, and using EMI filters. Additionally, the device should be tested for EMI and EMC compliance in the end application.
The MTBF of the ECLB60W-24S15 is typically in the range of 1-2 million hours, depending on the operating conditions and environment. However, this value can vary depending on various factors, such as temperature, humidity, and usage patterns. It is recommended to consult with the manufacturer or a reliability expert for a more accurate estimate.
Yes, the manufacturer recommends performing various tests and validation procedures to ensure the device meets the required specifications and performance. These may include input voltage testing, output voltage testing, efficiency testing, and reliability testing. It is recommended to consult with the manufacturer or a testing expert for a comprehensive testing plan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECLB60W-24S15 Overview

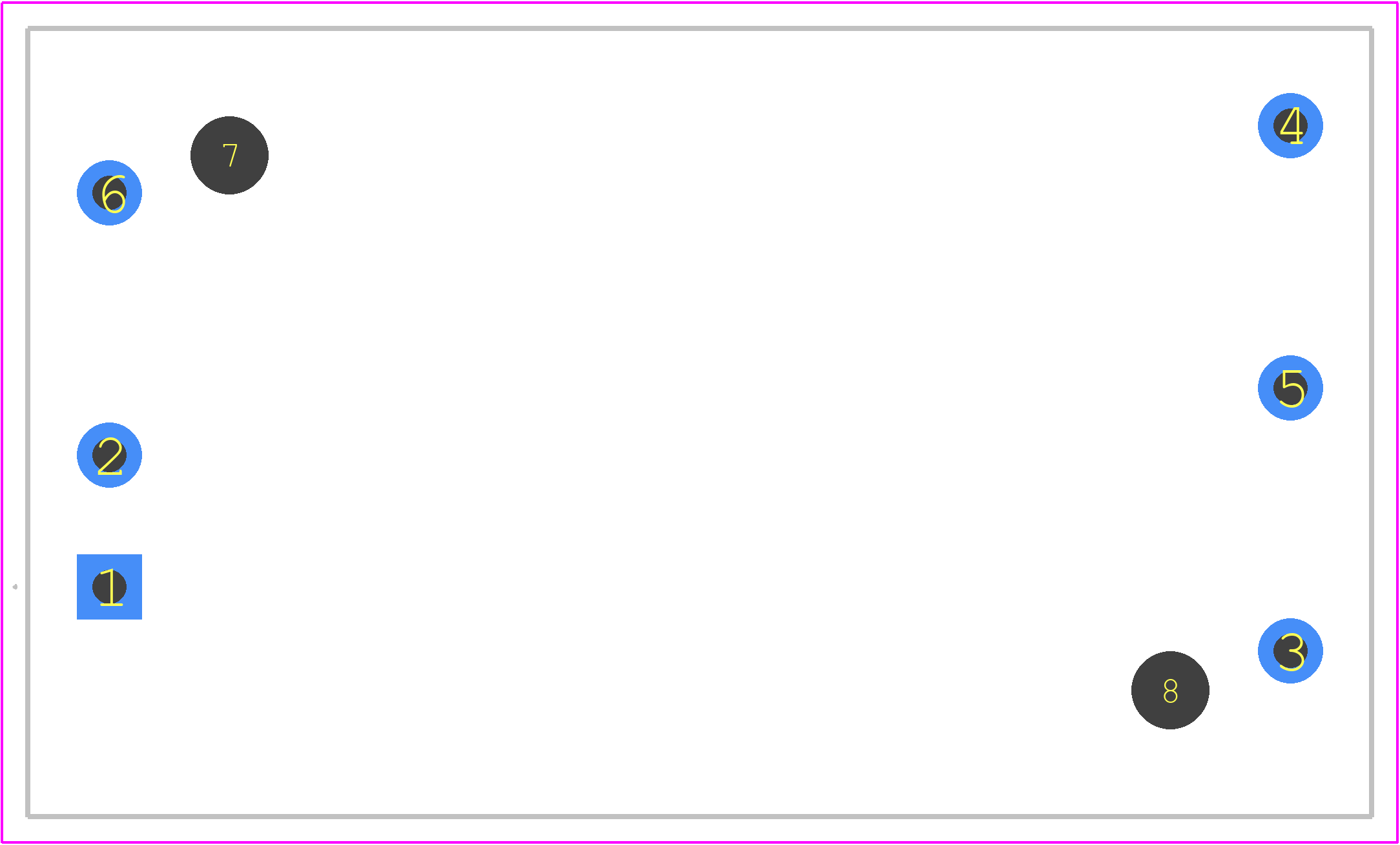

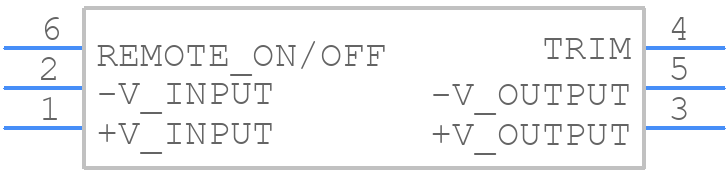

Use the download button to access the ECLB60W-24S15 schematic symbol, PCB footprint, and 3D model.
