OVER CURRENT, OVER VOLTAGE, SHORT CIRCUIT PROTECTION
Ripple Voltage (Main Out):
0.053025 Vrms
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
60 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.03 s
Width:
30.5 mm
ECLB60W-48S12 Frequently Asked Questions (FAQs)
The recommended PCB layout should ensure good thermal conductivity and minimal thermal resistance. A multi-layer PCB with thermal vias and a heat sink is recommended. The thermal management should include a heat sink with a thermal interface material and a fan for forced air cooling.
To ensure reliability and longevity, the converter should be operated within the specified temperature range and derating should be applied for high temperature and high humidity environments. Additionally, conformal coating and encapsulation can be used to protect the converter from moisture and contaminants.
The ECLB60W-48S12 is designed to meet CISPR 22 Class B and EN 55022 Class B EMI standards. To ensure EMC compliance, a metal enclosure, EMI filters, and shielding should be used. Additionally, the PCB layout should be designed to minimize radiation and conducted emissions.
Yes, the ECLB60W-48S12 can be used in redundant or parallel configurations to achieve higher power ratings or to provide redundancy in critical applications. However, the user should ensure that the converters are properly synchronized and that the output voltages are matched to prevent damage or instability.
The MTBF (Mean Time Between Failures) and FIT (Failures In Time) rates of the ECLB60W-48S12 are dependent on various factors such as operating conditions, temperature, and quality of the components. According to the datasheet, the MTBF is typically >500,000 hours and the FIT rate is <50 failures per billion hours.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECLB60W-48S12 Overview

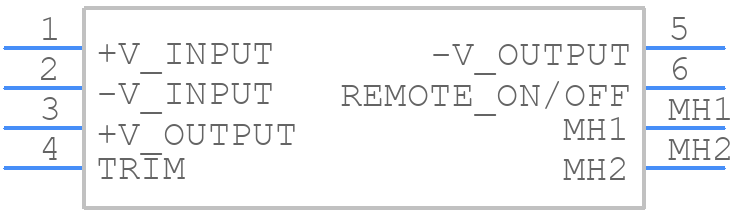

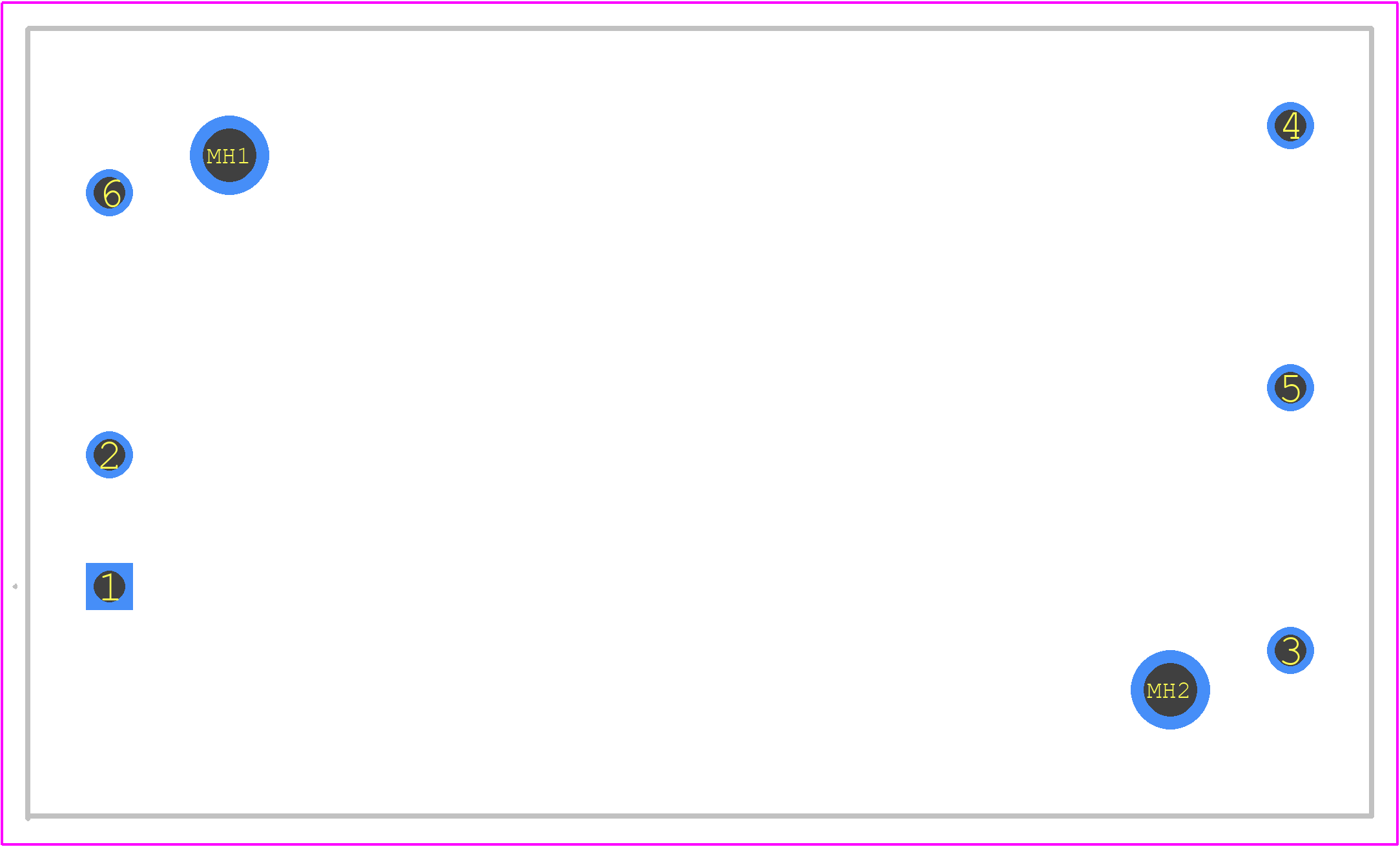

Use the download button to access the ECLB60W-48S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECLB6,
or try a keyword search, such as Power Supply Modules
