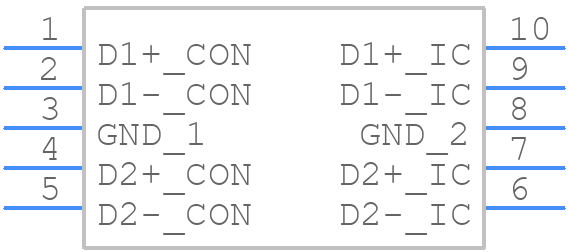

ECMF4-2459A6M10Y - STMicroelectronics

ECMF4-2459A6M10Y Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the ECMF4-2459A6M10Y?
  A good PCB layout for the ECMF4-2459A6M10Y involves keeping the input and output tracks as short as possible, using a solid ground plane, and minimizing the distance between the device and the antenna. A 4-layer PCB with a dedicated ground plane is recommended.
• How do I ensure the ECMF4-2459A6M10Y is properly matched to the antenna?
  To ensure proper matching, use a pi-network or a series-LC circuit to match the ECMF4-2459A6M10Y to the antenna. The goal is to achieve a return loss of at least 10 dB. You can use simulation tools like ADS or AWR to optimize the matching network.
• What is the maximum power handling capability of the ECMF4-2459A6M10Y?
  The ECMF4-2459A6M10Y can handle up to 30 dBm (1W) of input power. However, it's recommended to operate at a maximum of 20 dBm (0.1W) to ensure reliable operation and minimize the risk of damage.
• How do I troubleshoot issues with the ECMF4-2459A6M10Y?
  To troubleshoot issues, start by checking the power supply voltage and ensuring it's within the recommended range. Then, verify the input and output impedance matching. Use a spectrum analyzer to check for spurious emissions and a network analyzer to measure the device's S-parameters.
• What is the recommended storage and handling procedure for the ECMF4-2459A6M10Y?
  Store the ECMF4-2459A6M10Y in a dry, cool place away from direct sunlight. Handle the device by the body, avoiding touching the pins or electrical connections. Use an anti-static wrist strap or mat to prevent ESD damage.
