ECS-143-20-3X-EN-TR - ECS

Description: Crystals 14.31818MHz 20pF 50ppm -40C +85C

Download ECS-143-20-3X-EN-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ECS-143-20-3X-EN-TR - ECS - PCB symbol
click to zoom
PCB Footprints

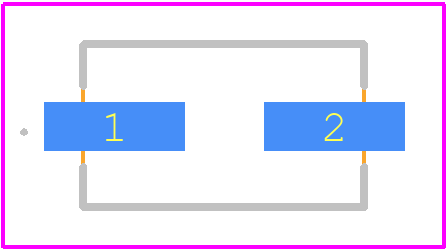

ECS-143-20-3X-EN-TR - ECS PCB footprint - Other - Other - ECS-143-20-3X-EN-TR-1
click to zoom
3D Models
ECS-143-20-3X-EN-TR - ECS - 3D model - Other - ECS-143-20-3X-EN-TR-1
click to zoom

ECS-143-20-3X-EN-TR Details

  • Manufacturer Part Number:

    ECS-143-20-3X-EN-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 2 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    ECS International Inc

  • YTEOL:

    6

  • Aging:

    5 PPM/FIRST YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    100 µW

  • Frequency Stability:

    0.005%

  • Frequency Tolerance (MHz):

    30

  • JESD-609 Code:

    e2

  • Load Capacitance:

    20 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    14.31818 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR

  • Physical Dimension:

    7mm x 4.1mm x 2.3mm

  • Series Resistance:

    60 Ω

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin/Copper (Sn/Cu)
