The operating temperature range for ECS-160-18-5PX-JES-TR is -40°C to 125°C, with a storage temperature range of -55°C to 150°C.
Yes, ECS-160-18-5PX-JES-TR is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally conscious designs.
The recommended soldering temperature for ECS-160-18-5PX-JES-TR is 260°C (500°F) with a maximum soldering time of 10 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
Yes, ECS-160-18-5PX-JES-TR is designed to withstand high-vibration environments, with a vibration rating of 10G peak acceleration. However, it's essential to ensure proper mounting and securing of the component to prevent damage or dislodging.
To prevent damage, ECS-160-18-5PX-JES-TR should be handled with anti-static wrist straps, mats, or other ESD protection devices. Store the component in its original packaging or a similar ESD-protective container, away from direct sunlight and moisture.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECS-160-18-5PX-JES-TR Overview

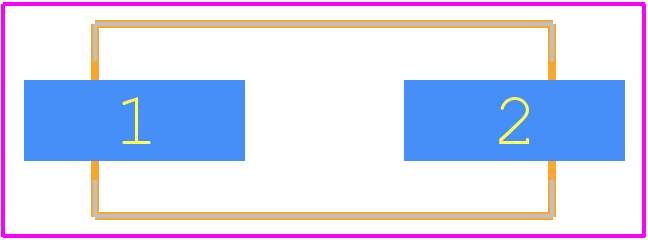

Use the download button to access the ECS-160-18-5PX-JES-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECS-1,
or try a keyword search, such as Quartz Crystals
