- Part Number ECS-160-7-33B-CKL-TR
- Manufacturer ECS
- Pin Count 4
- Part Category Crystal or Oscillator
- Package Category Other
- Footprint Name Other - ECS-160-7-33B-CKL-TR-1
- Released Date Feb 25, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ECS-160-7-33B-CKL-TR Details
-
Manufacturer Part Number:
ECS-160-7-33B-CKL-TR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SMD, 4 PIN
-
ECCN Code:
EAR99
-
Factory Lead Time:
8 Weeks
-
Manufacturer:
ECS International Inc
-
YTEOL:
7.2
-
Aging:
1 PPM/FIRST YEAR
-
Crystal/Resonator Type:
PARALLEL - FUNDAMENTAL
-
Drive Level:
200 µW
ECS-160-7-33B-CKL-TR Frequently Asked Questions (FAQs)
-
The recommended storage temperature for ECS-160-7-33B-CKL-TR is -40°C to 125°C.
-
Yes, the ECS-160-7-33B-CKL-TR is compatible with lead-free soldering, with a peak reflow temperature of 260°C.
-
The operating temperature range for ECS-160-7-33B-CKL-TR is -40°C to 85°C.
-
Yes, the ECS-160-7-33B-CKL-TR is designed to withstand high-vibration environments, with a vibration resistance of 10G peak acceleration.
-
Yes, the ECS-160-7-33B-CKL-TR is RoHS and REACH compliant, meeting the requirements for environmental sustainability.
Trust Checks
Expert Contribution
System Verified
Community Approved
ECS-160-7-33B-CKL-TR Overview

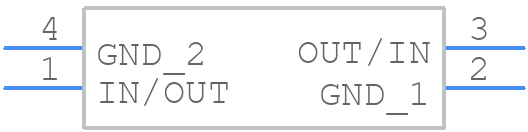

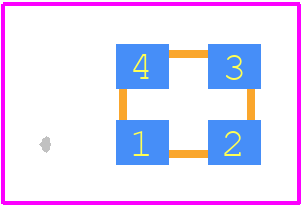

Use the download button to access the ECS-160-7-33B-CKL-TR schematic symbol, PCB footprint, and 3D model.
