ECS-160-9-42-CKM-TR - ECS

Description: Crystal 16MHz ±10ppm (Tol) ±10ppm (Stability) 9pF FUND 80Ohm 4-Pin SMD T/R

Download ECS-160-9-42-CKM-TR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ECS-160-9-42-CKM-TR model

Email notifications will be applied after download.

Send part feedback

Symbol

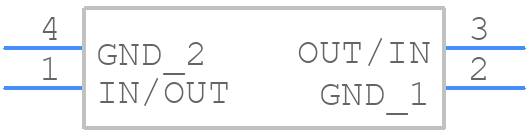

ECS-160-9-42-CKM-TR - ECS - PCB symbol

PCB Footprints

ECS-160-9-42-CKM-TR - ECS PCB footprint - Other - Other - 4*2.5*0.8mm

3D Models

ECS-160-9-42-CKM-TR - ECS - 3D model - Other - 4*2.5*0.8mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for ECS-160-9-42-CKM-TR
Part Number ECS-160-9-42-CKM-TR
Manufacturer ECS
Pin Count 4
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - 4*2.5*0.8mm
Released Date Sep 2, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ECS-160-9-42-CKM-TR Details

Manufacturer Part Number:
ECS-160-9-42-CKM-TR
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SMD, 4 PIN
ECCN Code:
EAR99
Factory Lead Time:
16 Weeks
Manufacturer:
ECS International Inc
YTEOL:
7
Aging:
5 PPM/FIRST YEAR
Crystal/Resonator Type:
PARALLEL - FUNDAMENTAL
Drive Level:
300 µW
Frequency Stability:
0.001%
Frequency Tolerance (MHz):
10
JESD-609 Code:
e4
Load Capacitance:
9 pF
Mounting Feature:
SURFACE MOUNT
Operating Frequency-Nom:
16 MHz
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-20 °C
Packing Method:
TR
Physical Dimension:
4.0mm x 2.5mm x 0.8mm
Series Resistance:
60 Ω
Surface Mount:
YES
Terminal Finish:
Gold (Au)
