ECS-184-18-30B-JEM-TR - ECS

Description: Crystals 18.432MHz 20ppm 18pF -20C +70C

Download ECS-184-18-30B-JEM-TR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ECS-184-18-30B-JEM-TR model

Email notifications will be applied after download.

Send part feedback

Symbol

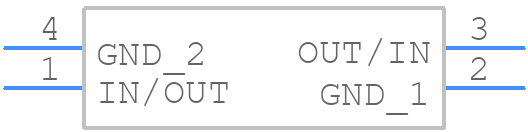

ECS-184-18-30B-JEM-TR - ECS - PCB symbol

PCB Footprints

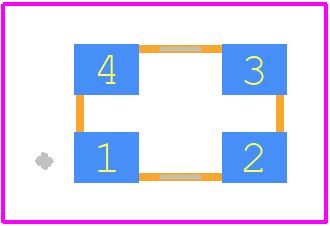

ECS-184-18-30B-JEM-TR - ECS PCB footprint - Other - Other - ECS-184-18-30B-JEM-TR-1

3D Models

ECS-184-18-30B-JEM-TR - ECS - 3D model - Other - ECS-184-18-30B-JEM-TR-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for ECS-184-18-30B-JEM-TR
Part Number ECS-184-18-30B-JEM-TR
Manufacturer ECS
Pin Count 4
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - ECS-184-18-30B-JEM-TR-1
Released Date Sep 30, 2020
Last Modified Date Jun 22, 2023 10:55 AM UTC
Pinout / Pin List Click Here (Member Only)

ECS-184-18-30B-JEM-TR Details

Manufacturer Part Number:
ECS-184-18-30B-JEM-TR
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SMD, 4 PIN
ECCN Code:
EAR99
Factory Lead Time:
10 Weeks
Manufacturer:
ECS International Inc
YTEOL:
7.1
Additional Feature:
TR, 7 INCH
Aging:
5 PPM/FIRST YEAR
Crystal/Resonator Type:
PARALLEL - FUNDAMENTAL
Drive Level:
100 µW
Frequency Stability:
0.005%
Frequency Tolerance (MHz):
20
JESD-609 Code:
e4
Load Capacitance:
18 pF
Mounting Feature:
SURFACE MOUNT
Operating Frequency-Nom:
18.4 MHz
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-20 °C
Packing Method:
TR, 7 INCH
Physical Dimension:
L5.0XB3.2XH0.85 (mm)/L0.197XB0.126XH0.033 (inch)
Series Resistance:
50 Ω
Surface Mount:
YES
Terminal Finish:
Gold (Au) - with Nickel (Ni) barrier

ECS-184-18-30B-JEM-TR Frequently Asked Questions (FAQs)

The recommended storage temperature for ECS-184-18-30B-JEM-TR is -40°C to 85°C, as per the manufacturer's guidelines.
Yes, ECS-184-18-30B-JEM-TR is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
The maximum operating frequency for ECS-184-18-30B-JEM-TR is 100 MHz, as specified in the datasheet.
Yes, ECS-184-18-30B-JEM-TR is designed to withstand high-vibration environments, making it suitable for industrial and automotive applications.
Yes, ECS-184-18-30B-JEM-TR is available in tape and reel packaging, which is convenient for automated assembly and high-volume production.

Trust Checks

System Verified

ECS-184-18-30B-JEM-TR Overview

Use the download button to access the ECS-184-18-30B-JEM-TR schematic symbol, PCB footprint, and 3D model.
