ECS-184-20-5G3XDS-TR footprint, schematic symbol and 3D model by ECS

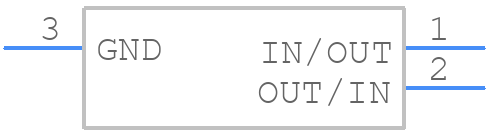

Symbol

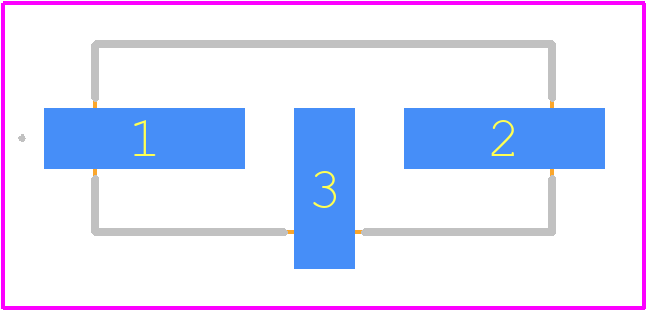

PCB Footprints

3D Models

ECS-184-20-5G3XDS-TR Details

The operating temperature range for the ECS-184-20-5G3XDS-TR is -40°C to +85°C.
Yes, the ECS-184-20-5G3XDS-TR is designed for high-reliability applications and is built with a ruggedized design to withstand harsh environments.
The typical start-up time for the ECS-184-20-5G3XDS-TR is 10ms, but this can vary depending on the specific application and operating conditions.
Yes, the ECS-184-20-5G3XDS-TR is designed to provide low phase noise, making it suitable for applications that require high-frequency stability and low jitter.
Yes, the ECS-184-20-5G3XDS-TR is RoHS and REACH compliant, making it suitable for use in a wide range of applications, including those in the European Union.

Community Provided

System Verified

Community Approved

Use the download button to access the ECS-184-20-5G3XDS-TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ECS-1, or try a keyword search, such as Quartz Crystals
