ECS-192-13-30B-AEM-TR - ECS

Description: 19.2 MHz ±25ppm Crystal 13pF 50 Ohms 4-SMD, No Lead

Download ECS-192-13-30B-AEM-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

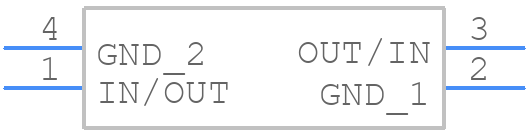

ECS-192-13-30B-AEM-TR - ECS - PCB symbol
click to zoom
PCB Footprints

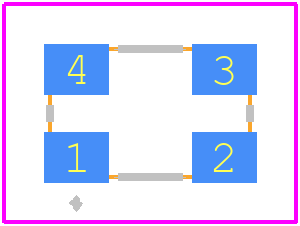

ECS-192-13-30B-AEM-TR - ECS PCB footprint - Other - Other - ECS-192-13-30B-AEM-TR-1
click to zoom
3D Models
ECS-192-13-30B-AEM-TR - ECS - 3D model - Other - ECS-192-13-30B-AEM-TR-1
click to zoom

ECS-192-13-30B-AEM-TR Details

  • Manufacturer Part Number:

    ECS-192-13-30B-AEM-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    ECS International Inc

  • YTEOL:

    7.1

  • Additional Feature:

    TR, 7 INCH

  • Aging:

    5 PPM/FIRST YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    100 µW

  • Frequency Stability:

    0.005%

  • Frequency Tolerance (MHz):

    25

  • JESD-609 Code:

    e4

  • Load Capacitance:

    13 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    19.2 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 7 INCH

  • Physical Dimension:

    L5.0XB3.2XH0.85 (mm)/L0.197XB0.126XH0.033 (inch)

  • Series Resistance:

    50 Ω

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

ECS-192-13-30B-AEM-TR Frequently Asked Questions (FAQs)

  • The recommended storage temperature for ECS-192-13-30B-AEM-TR is -40°C to 100°C, as specified by ECS International Inc.
  • Yes, ECS-192-13-30B-AEM-TR is designed to withstand high-vibration environments, with a vibration resistance of 10G peak acceleration, making it suitable for use in industrial and transportation applications.
  • Yes, ECS-192-13-30B-AEM-TR is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C, making it suitable for use in RoHS-compliant applications.
  • The typical power dissipation of ECS-192-13-30B-AEM-TR is 1.5W, although this may vary depending on the specific application and operating conditions.
  • ECS-192-13-30B-AEM-TR has a moisture sensitivity level (MSL) of 3, which means it can withstand humid or wet environments, but it's recommended to follow proper handling and storage procedures to prevent moisture-related damage.
