ECS-200-8-30Q-AES-TR - ECS

Description: Crystals 20.000 MHz 8 pF +/-25/50 ppm -40 +125 C AEC-Q200 ECX-53Q 5X3.2 mm RoHS

Download ECS-200-8-30Q-AES-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ECS-200-8-30Q-AES-TR - ECS - PCB symbol
click to zoom
PCB Footprints

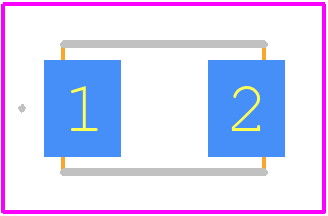

ECS-200-8-30Q-AES-TR - ECS PCB footprint - Other - Other - 5.00mm x 3.2mm x 1.1
click to zoom
3D Models
ECS-200-8-30Q-AES-TR - ECS - 3D model - Other - 5.00mm x 3.2mm x 1.1
click to zoom

ECS-200-8-30Q-AES-TR Details

  • Manufacturer Part Number:

    ECS-200-8-30Q-AES-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 2 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    ECS International Inc

  • YTEOL:

    7.05

  • Additional Feature:

    AEC-Q200; TR, 7 INCH

  • Aging:

    5 PPM/FIRST YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    300 µW

  • Frequency Stability:

    0.005%

  • Frequency Tolerance (MHz):

    25

  • JESD-609 Code:

    e4

  • Load Capacitance:

    8 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    20 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR

  • Physical Dimension:

    L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)

  • Series Resistance:

    40 Ω

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

ECS-200-8-30Q-AES-TR Frequently Asked Questions (FAQs)

  • The recommended storage temperature range is -40°C to 85°C (-40°F to 185°F).
  • Yes, it is compliant with RoHS, REACH, and ANSI/EIA-481-D standards.
  • The typical lead time is 8-12 weeks, but it may vary depending on the quantity and production schedule.
  • Yes, ECS International Inc offers customization options, such as different pinouts, labeling, and packaging. Please contact their sales team for more information.
  • The recommended soldering temperature profile is 260°C (500°F) for 10-15 seconds, with a peak temperature not exceeding 280°C (536°F).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECS-200-8-30Q-AES-TR Overview

Use the download button to access the ECS-200-8-30Q-AES-TR schematic symbol, PCB footprint, and 3D model.
