ECS-240-6-37B-7KM-TR - ECS

Description: Crystals 24MHz 6pF 80 ohms -20C to 70C 7ppm

Download ECS-240-6-37B-7KM-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

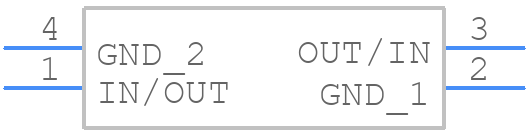

ECS-240-6-37B-7KM-TR - ECS - PCB symbol
click to zoom
PCB Footprints
ECS-240-6-37B-7KM-TR - ECS PCB footprint - Other - Other - ECS-240-6-37B-7KM-TR-1
click to zoom
3D Models
ECS-240-6-37B-7KM-TR - ECS - 3D model - Other - ECS-240-6-37B-7KM-TR-1
click to zoom

ECS-240-6-37B-7KM-TR Details

  • Manufacturer Part Number:

    ECS-240-6-37B-7KM-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    ECS International Inc

  • YTEOL:

    7.17

  • Additional Feature:

    TR, 7 INCH

  • Aging:

    1 PPM/FIRST YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    100 µW

  • Frequency Stability:

    0.001%

  • Frequency Tolerance (MHz):

    7

  • JESD-609 Code:

    e4

  • Load Capacitance:

    6 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    24 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 7 INCH

  • Physical Dimension:

    L2.0XB1.6XH0.45 (mm)/L0.079XB0.063XH0.018 (inch)

  • Series Resistance:

    50 Ω

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

ECS-240-6-37B-7KM-TR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for ECS-240-6-37B-7KM-TR is -40°C to +85°C.
  • Yes, ECS-240-6-37B-7KM-TR is compatible with lead-free soldering, making it suitable for RoHS-compliant applications.
  • The typical power consumption of ECS-240-6-37B-7KM-TR is around 10-20mA, depending on the specific application and operating conditions.
  • Yes, ECS-240-6-37B-7KM-TR is designed to withstand high-vibration environments, making it suitable for industrial, automotive, and aerospace applications.
  • Yes, ECS-240-6-37B-7KM-TR is available in different package options, including surface-mount, through-hole, and custom packages, depending on the specific requirements of the application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECS-240-6-37B-7KM-TR Overview

Use the download button to access the ECS-240-6-37B-7KM-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECS-2, or try a keyword search, such as Quartz Crystals
