ECS-270-20-3X-EN-TR footprint, schematic symbol and 3D model by ECS

Symbol

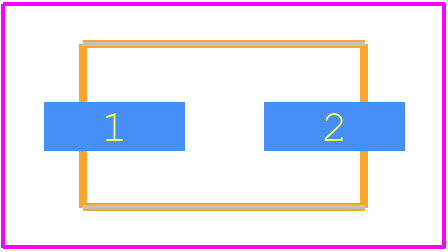

PCB Footprints

3D Models

ECS-270-20-3X-EN-TR Details

The operating temperature range for ECS-270-20-3X-EN-TR is -40°C to 125°C, with a storage temperature range of -55°C to 150°C.
Yes, ECS-270-20-3X-EN-TR is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally conscious designs.
The recommended soldering temperature for ECS-270-20-3X-EN-TR is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
Yes, ECS-270-20-3X-EN-TR is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial control systems, automotive systems, and aerospace systems.
The typical lead time for ECS-270-20-3X-EN-TR is 8-12 weeks, depending on the quantity and availability. It's recommended to check with ECS International Inc or authorized distributors for the most up-to-date lead time information.
