The recommended PCB layout involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal pad layout.
To ensure EMC, follow proper PCB design and layout guidelines, use shielding if necessary, and ensure that the device is properly grounded. Additionally, follow the recommended filter and decoupling capacitor configurations.
Exceeding the maximum operating temperature range can lead to reduced performance, decreased lifespan, and potential device failure. Ensure proper thermal management and avoid operating the device above the recommended temperature range.
While the ECS-300-20-30B-DU is designed to be robust, it's essential to follow proper mounting and soldering procedures to ensure reliability in high-vibration or high-shock environments. Consult the manufacturer's guidelines for specific recommendations.
To troubleshoot issues, start by verifying the input voltage, output load, and PCB layout. Check for proper thermal management, ensure correct component values, and consult the datasheet and application notes for guidance. If issues persist, contact ECS International Inc's technical support.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECS-300-20-30B-DU Overview

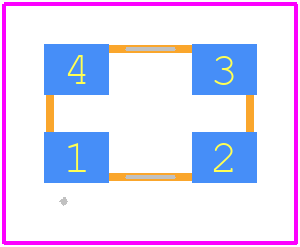

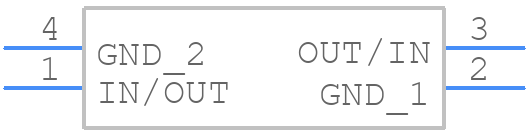

Use the download button to access the ECS-300-20-30B-DU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECS-3,
or try a keyword search, such as Quartz Crystals
