Part Image

ECS-384-8-37TC-CZY-TR - ECS

Description: Crystals MHz THERMISTOR CRYSTAL 2.05 x 1.65 x 0.8mm 38.400MHZ 8PF 10PPM TOL 12PPM STABILITY -30 +85 C

Download ECS-384-8-37TC-CZY-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

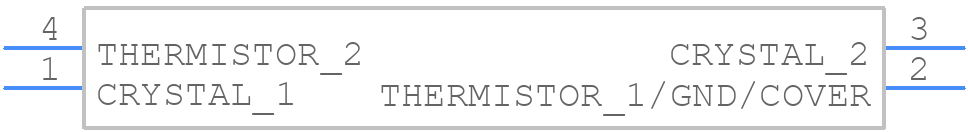

Symbol
ECS-384-8-37TC-CZY-TR - ECS - PCB symbol
click to zoom
PCB Footprints
ECS-384-8-37TC-CZY-TR - ECS PCB footprint - Other - Other - ECS-384-8-37TC-CZY-TR-1
click to zoom
3D Models
ECS-384-8-37TC-CZY-TR - ECS - 3D model - Other - ECS-384-8-37TC-CZY-TR-1
click to zoom

ECS-384-8-37TC-CZY-TR Details

  • Manufacturer Part Number:

    ECS-384-8-37TC-CZY-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    ECS International Inc

  • YTEOL:

    7.3

  • Additional Feature:

    AT CUT

  • Aging:

    0.7 PPM/YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    10 µW

  • Frequency Stability:

    0.0012%

  • Frequency Tolerance (MHz):

    10

  • Load Capacitance:

    8 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    38.4 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Packing Method:

    TR, 7 INCH

  • Physical Dimension:

    2.05mm x 1.65mm x 0.8mm

  • Series Resistance:

    80 Ω

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) over Nickel (Ni)

ECS-384-8-37TC-CZY-TR Frequently Asked Questions (FAQs)

  • The recommended storage temperature for ECS-384-8-37TC-CZY-TR is -40°C to 125°C, as per the manufacturer's guidelines.
  • Yes, ECS-384-8-37TC-CZY-TR is compatible with lead-free soldering, making it suitable for RoHS-compliant applications.
  • The thermal resistance of ECS-384-8-37TC-CZY-TR is typically around 10°C/W, but this value may vary depending on the specific application and mounting conditions.
  • Yes, ECS-384-8-37TC-CZY-TR is designed to withstand high-vibration environments, making it suitable for applications such as automotive, aerospace, and industrial control systems.
  • Yes, ECS-384-8-37TC-CZY-TR is available in tape and reel packaging, which is convenient for automated assembly and high-volume production.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECS-384-8-37TC-CZY-TR Overview

Use the download button to access the ECS-384-8-37TC-CZY-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECS-3, or try a keyword search, such as Quartz Crystals
