ECS-400-10-37B2-CKM-TR - ECS

Description: 40 MHz ±10ppm Crystal 10pF 40 Ohms 4-SMD, No Lead , -20°C ~ 70°C

Download ECS-400-10-37B2-CKM-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

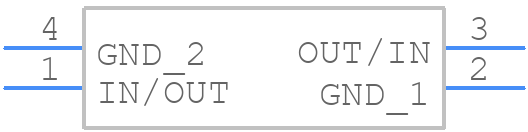

ECS-400-10-37B2-CKM-TR - ECS - PCB symbol
click to zoom
PCB Footprints
ECS-400-10-37B2-CKM-TR - ECS PCB footprint - Other - Other - 2.0mm x 1.6mm x 0.45mm
click to zoom
3D Models
ECS-400-10-37B2-CKM-TR - ECS - 3D model - Other - 2.0mm x 1.6mm x 0.45mm
click to zoom

ECS-400-10-37B2-CKM-TR Details

  • Manufacturer Part Number:

    ECS-400-10-37B2-CKM-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    ECS International Inc

  • YTEOL:

    7.27

  • Aging:

    2 PPM/FIRST YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    100 µW

  • Frequency Stability:

    0.001%

  • Frequency Tolerance (MHz):

    10

  • JESD-609 Code:

    e4

  • Load Capacitance:

    10 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    40 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 7 INCH

  • Physical Dimension:

    2mm x 1.6mm x 0.45mm

  • Series Resistance:

    40 Ω

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

ECS-400-10-37B2-CKM-TR Frequently Asked Questions (FAQs)

  • The operating temperature range for the ECS-400-10-37B2-CKM-TR is -40°C to 85°C, as specified by ECS International Inc.
  • Yes, the ECS-400-10-37B2-CKM-TR is RoHS (Restriction of Hazardous Substances) compliant, meeting the EU's environmental regulations.
  • The recommended storage temperature for the ECS-400-10-37B2-CKM-TR is -40°C to 25°C, as specified by ECS International Inc.
  • Yes, the ECS-400-10-37B2-CKM-TR is designed to withstand high-vibration environments, making it suitable for industrial and automotive applications.
  • The typical lead time for delivery of the ECS-400-10-37B2-CKM-TR varies depending on the quantity and availability, but it's usually around 4-6 weeks.
