The recommended PCB layout involves keeping the component away from high-current paths and heat sources. A thermal pad on the bottom of the component can be connected to a copper plane on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended for the PCB.
To ensure reliability in high-vibration environments, it's recommended to use a secure mounting method, such as screwing or adhesive, and to follow the manufacturer's recommended torque specifications. Additionally, conformal coating can be applied to protect the component from moisture and contaminants.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the component's performance may degrade at extreme temperatures. It's recommended to operate the component within a temperature range of -20°C to 100°C for optimal performance and reliability.
While the component is designed to operate in a variety of environments, it's not recommended for use in humid or high-moisture environments without proper protection. Conformal coating or potting can be used to protect the component from moisture and contaminants.
The component should be stored in a dry, cool place, away from direct sunlight and moisture. It's recommended to handle the component by the body, rather than the leads, to prevent damage. Anti-static precautions should be taken when handling the component to prevent electrostatic discharge (ESD) damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECS-480-10-30B-CKL-TR Overview

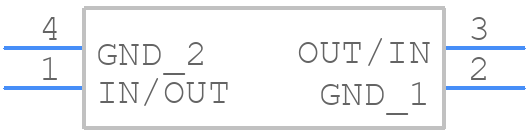

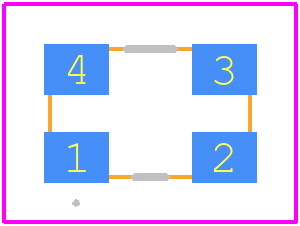

Use the download button to access the ECS-480-10-30B-CKL-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECS-4,
or try a keyword search, such as Quartz Crystals
