The recommended PCB layout involves keeping the component away from high-current paths and heat sources. A thermal pad or heat sink is recommended to maintain a junction temperature below 125°C. A minimum of 2oz copper thickness and a 4-layer PCB is recommended for optimal thermal performance.
Follow the recommended soldering profile and use a solder with a melting point below 260°C. Avoid applying excessive force or pressure during assembly, and ensure the device is handled by the package, not the pins. Use a soldering iron with a temperature control and a fine tip to prevent overheating.
Handle the device in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and ensure all equipment is grounded. Avoid touching the pins or components, and use ESD-safe packaging and storage materials.
The ECS-75SMF45A30B is a commercial-grade device, and its use in high-reliability or safety-critical applications should be evaluated on a case-by-case basis. Consult with ECS International Inc or a qualified reliability engineer to determine the device's suitability for your specific application.
Common failure modes include overheating, overvoltage, and ESD damage. Mitigation strategies include proper thermal management, voltage regulation, and ESD protection. Implementing a robust design with adequate margins, using protective components, and following recommended assembly and handling procedures can also help minimize the risk of failure.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECS-75SMF45A30B Overview

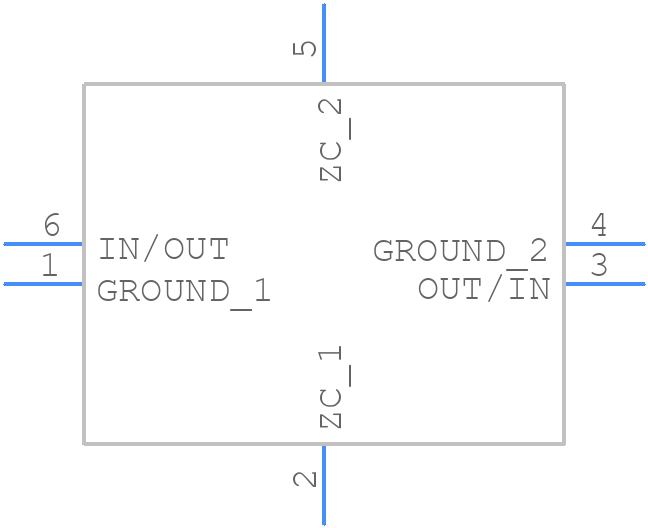

Use the download button to access the ECS-75SMF45A30B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECS-7,
or try a keyword search, such as Crystal Filters
