ECS-96SMF21A30 - ECS

Description: Signal Conditioning 21.4MHz, +/-15KHz, 2 Pole, 7x5x1.35mm SMD Ceramic Package

Download ECS-96SMF21A30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

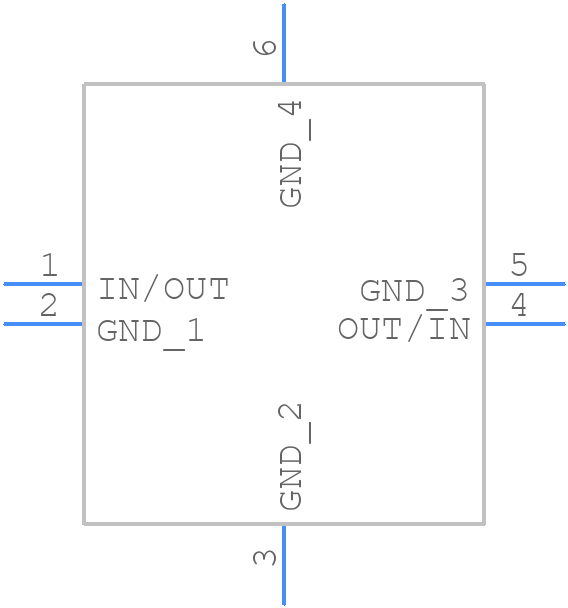

ECS-96SMF21A30 - ECS - PCB symbol
click to zoom
PCB Footprints
ECS-96SMF21A30 - ECS PCB footprint - Other - Other - ECS-96SMF21A30-2
click to zoom
3D Models
ECS-96SMF21A30 - ECS - 3D model - Other - ECS-96SMF21A30-2
click to zoom

ECS-96SMF21A30 Details

  • Manufacturer Part Number:

    ECS-96SMF21A30

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, MINIATURE, SMD, 6 PIN

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    ECS International Inc

  • Additional Feature:

    TAPE AND REEL; 2 POLE

  • Attenuation Frequency (+/- delta f)-Max:

    15 kHz

  • Attenuation@Freq-Max:

    45 dB

  • Band Width (+/- delta f):

    15 kHz

  • Center or Cutoff Frequency (fo/fc):

    21.4 MHz

  • Construction:

    MONOLITHIC

  • Filter Type:

    CRYSTAL FILTER

  • Height:

    1.5 mm

  • Input/Output Impedance:

    2000 OHM//0.5

  • Insertion Loss-Max:

    2 dB

  • Length:

    7 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -30 °C

  • Width:

    5 mm

ECS-96SMF21A30 Frequently Asked Questions (FAQs)

  • The operating temperature range of the ECS-96SMF21A30 is -40°C to 85°C, as specified in the datasheet. However, it's recommended to operate within -20°C to 70°C for optimal performance and reliability.
  • To configure the ECS-96SMF21A30 for Wi-Fi and Bluetooth coexistence, you need to use the ECS-provided API or AT commands to set the coexistence mode. This will ensure that the module can handle both Wi-Fi and Bluetooth traffic simultaneously without interference.
  • The maximum transmit power of the ECS-96SMF21A30 is 18 dBm for Wi-Fi and 10 dBm for Bluetooth. However, the actual transmit power may vary depending on the regulatory domain and the specific application.
  • Yes, the ECS-96SMF21A30 supports Wi-Fi Direct, also known as Wi-Fi P2P. This allows devices to connect to each other directly without the need for a Wi-Fi access point.
  • Yes, the ECS-96SMF21A30 has an external antenna connector that allows you to connect an external antenna. This can improve the wireless performance and range of the module.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECS-96SMF21A30 Overview

Use the download button to access the ECS-96SMF21A30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECS-9, or try a keyword search, such as Crystal Filters
