ECS-RTC-3225-5609-TR footprint, schematic symbol and 3D model by ECS

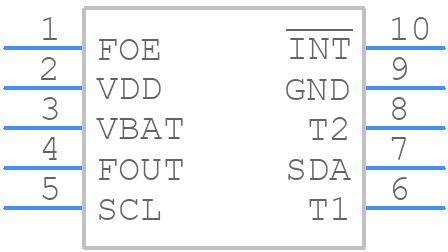

Symbol

PCB Footprints

3D Models

ECS-RTC-3225-5609-TR Details

The operating temperature range of the ECS-RTC-3225-5609-TR is -40°C to +85°C.
Yes, the ECS-RTC-3225-5609-TR is compatible with both 3.3V and 5V systems, making it a versatile option for various applications.
The typical current consumption of the ECS-RTC-3225-5609-TR is around 1.5μA in timekeeping mode and 10mA in programming mode.
Yes, the ECS-RTC-3225-5609-TR has a built-in lithium-ion battery that provides backup power for up to 5 years in timekeeping mode.
The ECS-RTC-3225-5609-TR's clock has an accuracy of ±2ppm at 25°C, which is suitable for most industrial and commercial applications.

Community Provided

System Verified

Community Approved

Use the download button to access the ECS-RTC-3225-5609-TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ECS-R, or try a keyword search, such as TCXO
