ECS-SDR1-4339-TR - ECS

Description: SAW Resonator 433.92MHz ±75kHz (Tol) 23Ohm 8-Pin Ultraminiature SMD T/R

Download ECS-SDR1-4339-TR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ECS-SDR1-4339-TR model

Email notifications will be applied after download.

Send part feedback

Symbol

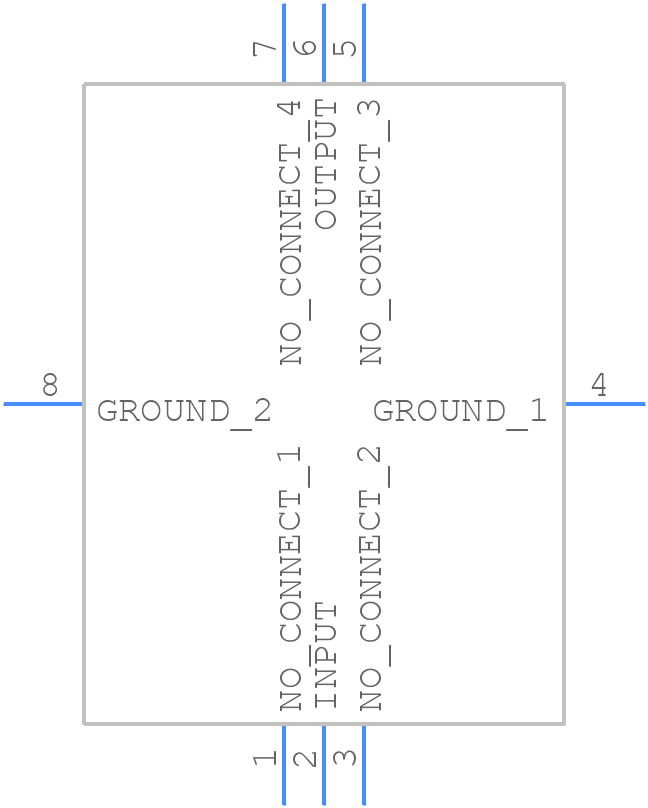

ECS-SDR1-4339-TR - ECS - PCB symbol

PCB Footprints

ECS-SDR1-4339-TR - ECS PCB footprint - Other - Other - ECS-SDR1-4339-TR-5

3D Models

ECS-SDR1-4339-TR - ECS - 3D model - Other - ECS-SDR1-4339-TR-5

Datasheet Download Datasheet
Stock & Prices Price & Stock for ECS-SDR1-4339-TR
Part Number ECS-SDR1-4339-TR
Manufacturer ECS
Pin Count 8
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - ECS-SDR1-4339-TR-5
Released Date Oct 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ECS-SDR1-4339-TR Details

Manufacturer Part Number:
ECS-SDR1-4339-TR
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, ULTRA MINIATURE, SMD, 8 PIN
Factory Lead Time:
20 Weeks
Manufacturer:
ECS International Inc
Additional Feature:
TAPE AND REEL
Crystal/Resonator Type:
1-PORT
Frequency Stability:
0.0002%
Frequency Tolerance (MHz):
0.075
Insertion Loss:
1.8 dB
Mounting Feature:
SURFACE MOUNT
Operating Frequency-Nom:
433.92 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Physical Dimension:
L5.0XB5.0XH1.5 (mm)/L0.197XB0.197XH0.059 (inch)
Surface Mount:
YES

ECS-SDR1-4339-TR Frequently Asked Questions (FAQs)

The operating temperature range of the ECS-SDR1-4339-TR is -40°C to +85°C.
Yes, the ECS-SDR1-4339-TR is compliant with the IEEE 802.15.4 and Zigbee wireless communication standards.
The transmission power of the ECS-SDR1-4339-TR module is up to +20 dBm (100 mW).
Yes, the ECS-SDR1-4339-TR module has built-in antenna diversity, which helps to improve the overall wireless communication performance.
The typical current consumption of the ECS-SDR1-4339-TR module is around 30 mA in transmit mode and 10 mA in receive mode.

Trust Checks

Expert Contribution

System Verified

Community Approved

ECS-SDR1-4339-TR Overview

Use the download button to access the ECS-SDR1-4339-TR schematic symbol, PCB footprint, and 3D model.
