ECS-TXO-20CSMV4-384-AY-TR - ECS

Description: TCXO Oscillators 38.400 MHz MultiVolt TCXO Clipped Sine Wave 1.7 - 3.6 +/-0.5 ppm -30 - +85C 2.0 x 1.6 mm 4 Pad S

Download ECS-TXO-20CSMV4-384-AY-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

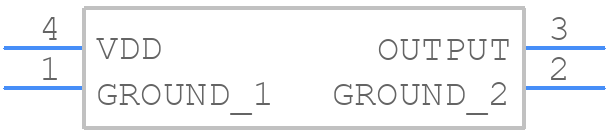

ECS-TXO-20CSMV4-384-AY-TR - ECS - PCB symbol
click to zoom
PCB Footprints
ECS-TXO-20CSMV4-384-AY-TR - ECS PCB footprint - Other - Other - ECS-TXO-20CSMV4-384-AY-TR-2
click to zoom
3D Models
ECS-TXO-20CSMV4-384-AY-TR - ECS - 3D model - Other - ECS-TXO-20CSMV4-384-AY-TR-2
click to zoom

ECS-TXO-20CSMV4-384-AY-TR Details

  • Manufacturer Part Number:

    ECS-TXO-20CSMV4-384-AY-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    ECS International Inc

  • Aging:

    1 PPM/FIRST YEAR

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    0.5%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Nom:

    38.4 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Oscillator Type:

    CLIPPED SINE

  • Output Level:

    0.8 V

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC4,.06X.08,63/39

  • Packing Method:

    TR

  • Physical Dimension:

    2.0mm x 1.6mm x 0.8mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au)

ECS-TXO-20CSMV4-384-AY-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the ECS International Inc application note AN-001, which provides guidelines for optimal performance and thermal management.
  • The ECS-TXO-20CSMV4-384-AY-TR has a specified frequency stability of ±20 ppm over the operating temperature range of -40°C to 85°C. However, it's recommended to consult the ECS International Inc's temperature stability curve in the datasheet or contact their technical support for more detailed information.
  • The ECS-TXO-20CSMV4-384-AY-TR can operate with a power supply voltage tolerance of ±10% of the nominal 3.3V supply voltage. However, it's recommended to maintain a tight voltage regulation to ensure optimal performance and frequency stability.
  • The ECS-TXO-20CSMV4-384-AY-TR is designed to meet the requirements of MIL-STD-883, Method 2002.4 for vibration and MIL-STD-883, Method 2001.3 for shock. However, it's recommended to consult ECS International Inc's environmental testing reports and application notes for more detailed information on the oscillator's performance in harsh environments.
  • The recommended soldering profile for the ECS-TXO-20CSMV4-384-AY-TR can be found in the ECS International Inc's soldering guidelines document, which provides a recommended reflow soldering profile with a peak temperature of 260°C and a dwell time of 30 seconds.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECS-TXO-20CSMV4-384-AY-TR Overview

Use the download button to access the ECS-TXO-20CSMV4-384-AY-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECS-T, or try a keyword search, such as TCXO
