ECS-TXO-3225-160-TR footprint, schematic symbol and 3D model by ECS

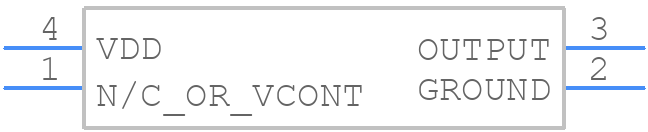

Symbol

PCB Footprints

3D Models

ECS-TXO-3225-160-TR Details

The recommended storage condition is in a dry, cool place, away from direct sunlight, and in its original packaging to prevent damage and moisture absorption.
Handle the component by the edges, avoid touching the pins or the oscillator surface, and use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
The maximum operating temperature range is -40°C to +85°C, but it's recommended to operate within -20°C to +70°C for optimal performance and reliability.
Yes, but ensure the component is properly mounted and secured to withstand the vibration. ECS International Inc recommends following the recommended mounting procedure and using a vibration-dampening material if necessary.
Check the power supply voltage, ensure proper grounding, and verify the oscillator is properly connected to the circuit. If issues persist, consult the datasheet or contact ECS International Inc's technical support.

Community Provided

System Verified

Community Approved

Use the download button to access the ECS-TXO-3225-160-TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ECS-T, or try a keyword search, such as TCXO
