ECS-TXO-5032-160-TR footprint, schematic symbol and 3D model by ECS

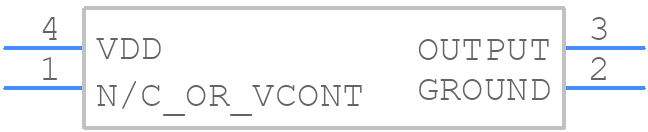

Symbol

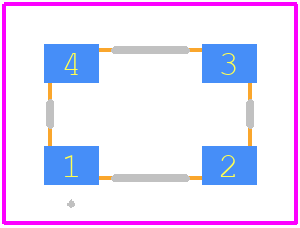

PCB Footprints

3D Models

ECS-TXO-5032-160-TR Details

Store in a dry, cool place, away from direct sunlight, and avoid exposure to moisture, extreme temperatures, and physical stress.
Handle the component by the edges, avoid touching the pins, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
Follow the recommended soldering profile: peak temperature 240°C, time above 217°C 10-15 seconds, and avoid exceeding 260°C to prevent damage to the component.
Yes, but ensure proper mounting and secure the component to prevent mechanical stress and vibration-induced failure. Consult ECS International Inc for specific guidance.
Consult the datasheet, application notes, and ECS International Inc's technical support resources. Perform visual inspections, check for proper soldering, and verify the oscillator circuit design.

Community Provided

System Verified

Community Approved

Use the download button to access the ECS-TXO-5032-160-TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ECS-T, or try a keyword search, such as TCXO
