ECS-TXO-5032-270-TR - ECS

Description: TCXO Oscillators 27MHz 3.3V HCMOS 2.5ppm -30C +85C

Download ECS-TXO-5032-270-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

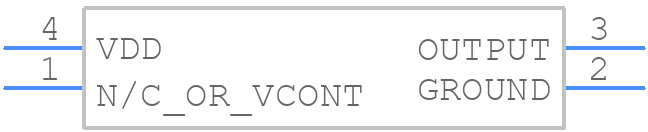

ECS-TXO-5032-270-TR - ECS - PCB symbol
click to zoom
PCB Footprints

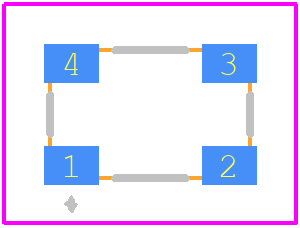

ECS-TXO-5032-270-TR - ECS PCB footprint - Other - Other - ECS-TXO-5032-270-TR-2
click to zoom
3D Models
ECS-TXO-5032-270-TR - ECS - 3D model - Other - ECS-TXO-5032-270-TR-2
click to zoom

ECS-TXO-5032-270-TR Details

  • Manufacturer Part Number:

    ECS-TXO-5032-270-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    ECS International Inc

  • YTEOL:

    6

  • Aging:

    1 PPM/YEAR

  • Fall Time-Max:

    10 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    2.5%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Nom:

    27 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Oscillator Type:

    HCMOS

  • Output Load:

    15 pF

  • Package Equivalence Code:

    LCC4,.12X.2,145/90

  • Packing Method:

    TR

  • Physical Dimension:

    5mm x 3.2mm x 1.5mm

  • Rise Time-Max:

    10 ns

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    40/60 %

  • Terminal Finish:

    Gold (Au)

ECS-TXO-5032-270-TR Frequently Asked Questions (FAQs)

  • The recommended storage condition for ECS-TXO-5032-270-TR is in a dry, cool place with a temperature range of -40°C to 85°C and humidity below 80%.
  • Yes, ECS-TXO-5032-270-TR is designed to operate in high-vibration environments and can withstand vibrations up to 20G.
  • The typical lead time for ECS-TXO-5032-270-TR is 4-6 weeks, but it may vary depending on the quantity and availability.
  • Yes, ECS-TXO-5032-270-TR is RoHS and REACH compliant, making it suitable for use in European Union countries.
  • Yes, ECS International Inc offers customization options for ECS-TXO-5032-270-TR, including custom frequencies and voltage ranges, but it may require a minimum order quantity and additional lead time.
