ECW1J-B24-EC0024L Frequently Asked Questions (FAQs)

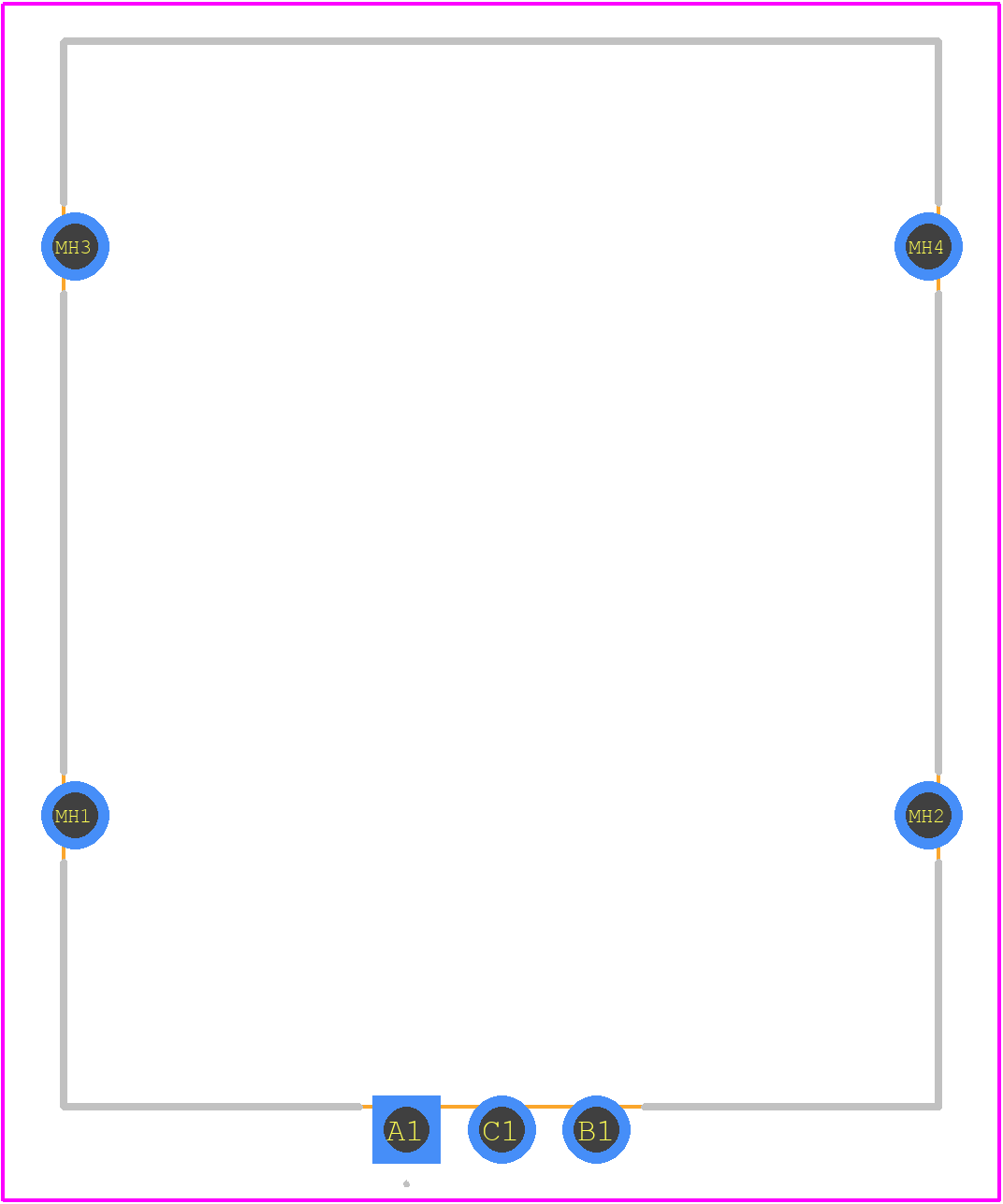

• What is the recommended PCB footprint for the ECW1J-B24-EC0024L?
  The recommended PCB footprint for the ECW1J-B24-EC0024L is a rectangular pad with dimensions of 1.5mm x 0.8mm, with a 0.5mm diameter hole in the center for the pin.
• How do I ensure reliable soldering of the ECW1J-B24-EC0024L?
  To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pad. Hold the iron at a 20-30° angle and apply gentle pressure.
• What is the maximum operating temperature range for the ECW1J-B24-EC0024L?
  The maximum operating temperature range for the ECW1J-B24-EC0024L is -40°C to 125°C, with a storage temperature range of -40°C to 150°C.
• Can I use the ECW1J-B24-EC0024L in a high-vibration environment?
  Yes, the ECW1J-B24-EC0024L is designed to withstand high-vibration environments, with a vibration resistance of 10G peak acceleration, 10-2000Hz frequency range.
• How do I handle ESD protection for the ECW1J-B24-EC0024L?
  To handle ESD protection, use an ESD wrist strap or mat, and ensure that the PCB and components are properly grounded. Avoid touching the component pins or PCB traces to prevent ESD damage.
