ECWFG2J225K - Panasonic

Description: CAP FILM 2.2UF 10% 630VDC RADIAL

Download ECWFG2J225K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ECWFG2J225K - Panasonic - PCB symbol
click to zoom

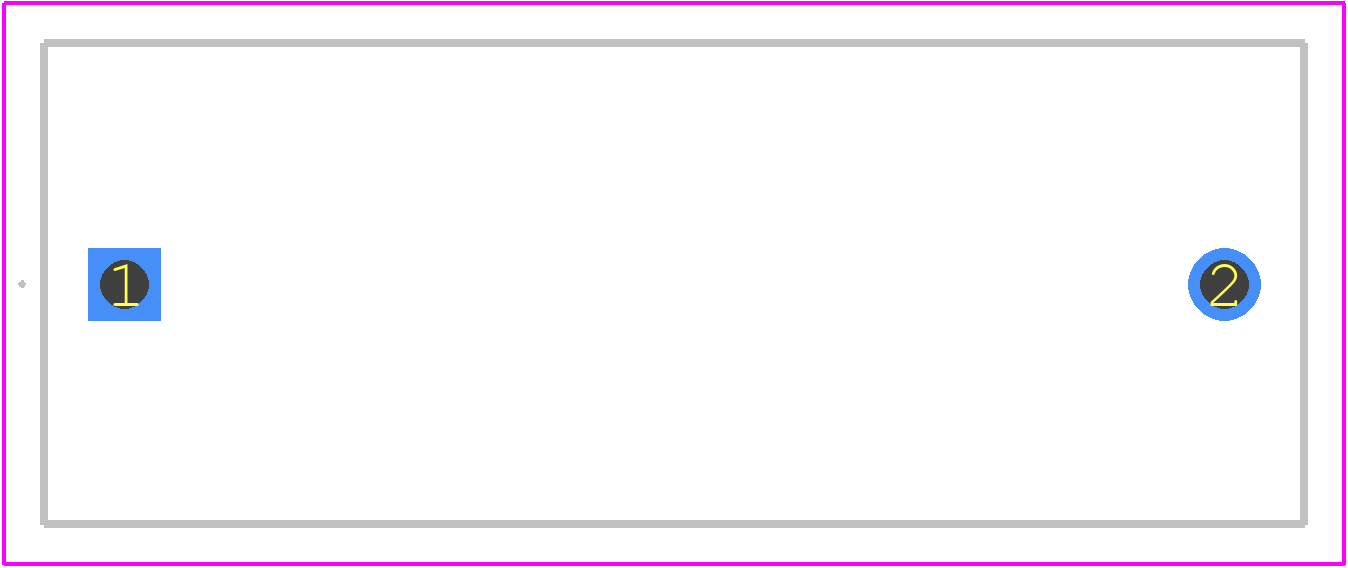

PCB Footprints
ECWFG2J225K - Panasonic PCB footprint - Other - Other - ECWFG2J225K-1
click to zoom
3D Models
ECWFG2J225K - Panasonic - 3D model - Other - ECWFG2J225K-1
click to zoom

ECWFG2J225K Details

  • Manufacturer Part Number:

    ECWFG2J225K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7.46

  • Capacitance:

    2.2 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    24.5 mm

  • Length:

    31.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    630 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Pitch:

    27.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    12 mm

ECWFG2J225K Frequently Asked Questions (FAQs)

  • The recommended land pattern for the ECWFG2J225K capacitor is a rectangular pad with a size of 3.2mm x 1.6mm, with a solder mask clearance of 0.2mm.
  • Yes, the ECWFG2J225K capacitor is designed for high-reliability applications, such as automotive, industrial, and medical devices. It meets the requirements of AEC-Q200 and IEC 60384-16 standards.
  • The derating curve for the ECWFG2J225K capacitor is typically provided in the Panasonic capacitor selection guide or can be obtained from Panasonic's technical support team. It provides guidance on reducing the capacitor's voltage and temperature ratings for specific operating conditions.
  • The ECWFG2J225K capacitor has a maximum operating temperature of 125°C, making it suitable for high-temperature applications. However, the capacitor's performance and lifespan may degrade at elevated temperatures, so it's essential to consult the datasheet and Panasonic's technical support for specific guidance.
  • The equivalent series resistance (ESR) of the ECWFG2J225K capacitor is typically around 1.5 ohms at 100 kHz. However, the exact ESR value may vary depending on the specific capacitor lot and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECWFG2J225K Overview

Use the download button to access the ECWFG2J225K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECWFG, or try a keyword search, such as Ceramic Capacitors
