Part Image

ECWU2124V16 - Panasonic

Description: PANASONIC - ECWU2124V16 - DC Film Capacitor, 0.12 µF, 250 V, Metallized PEN Stacked, ± 5%, 2420 [6050 Metric]

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

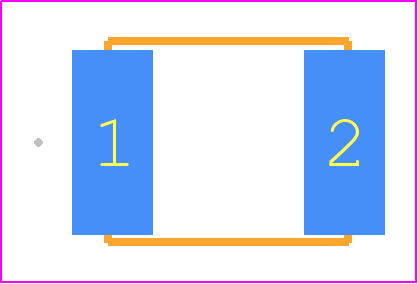

ECWU2124V16 - Panasonic PCB footprint - Capacitor Chip Non-polarised - Capacitor Chip Non-polarised - ECWU2124V16
click to zoom

3D Models

ECWU2124V16 - Panasonic  - 3D model - Capacitor Chip Non-polarised - ECWU2124V16
click to zoom

Risk Rank

ECWU2124V16 — Panasonic
2.2 - Low Design Risk
Design Risk Rank is determined by in-depth analysis across multiple factors, including part availability, functional equivalents, lifecycle and more. Learn more →

Parts related to ECWU2124V16

Showing 0 results

ECWU2124V16 Alternates

Showing results

Image Part Number Design Risk Rank
Part Image NSWC124J250TRF5NF NIC Components Corp

Film Capacitor, Polyethylene Naphthalate, 250V, 5% +Tol, 5% -Tol, 0.12uF, Surface Mount, 2420, CHIP, ROHS COMPLIANT

Part Image NSWC124J250TRF5F NIC Components Corp

Film Capacitor, Polyethylene Naphthalate, 250V, 5% +Tol, 5% -Tol, 0.12uF, Surface Mount, 2420, CHIP, ROHS COMPLIANT
