ED8401P01QI - Intel

Description: Switching Controllers 4-Phase Digital Controller with PMBus Interface for ET6160LI; 500kHz

Download ED8401P01QI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

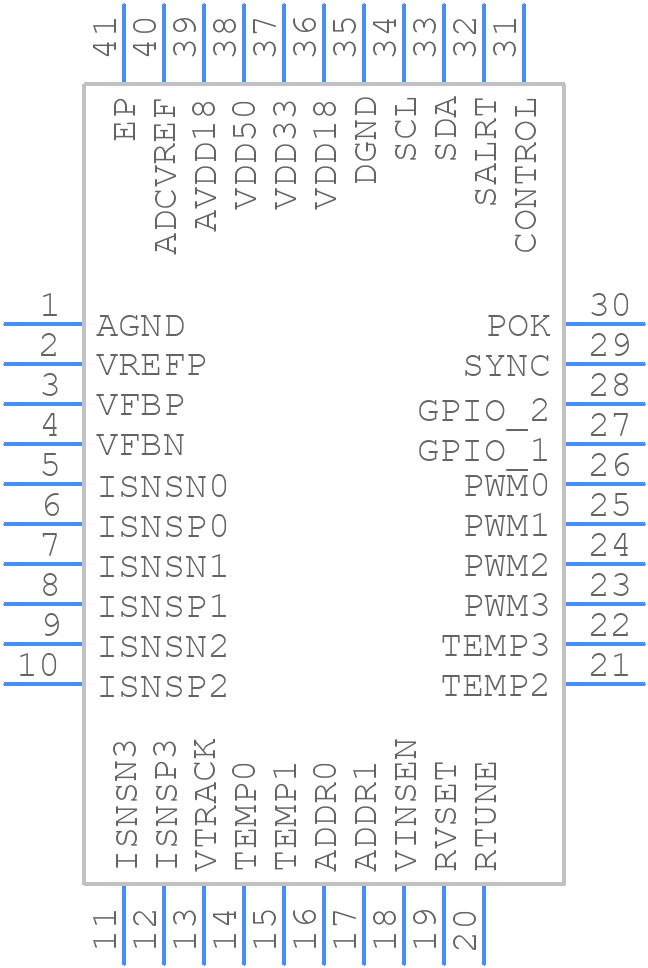

Symbol
ED8401P01QI - Intel - PCB symbol
click to zoom
PCB Footprints
ED8401P01QI - Intel PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ED8401P01QI
click to zoom
3D Models
ED8401P01QI - Intel - 3D model - Quad Flat No-Lead - ED8401P01QI
click to zoom

ED8401P01QI Details

  • Manufacturer Part Number:

    ED8401P01QI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    125 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ED8401P01QI Frequently Asked Questions (FAQs)

  • Intel provides a reference design guide for the ED8401P01QI, which includes recommendations for PCB layout, thermal design, and component placement. It's essential to follow these guidelines to ensure optimal performance, thermal management, and signal integrity.
  • The ED8401P01QI has multiple power modes and configuration options. Engineers should consult the datasheet and Intel's power management guidelines to understand how to configure the device for optimal power consumption, based on their specific application requirements.
  • The ED8401P01QI requires a high-quality input clock signal with specific frequency, amplitude, and jitter characteristics. Engineers should ensure that their clock source meets these requirements to guarantee reliable operation and minimize errors.
  • Intel provides troubleshooting guides and application notes that cover common issues and debugging techniques for the ED8401P01QI. Engineers should consult these resources and use tools like oscilloscopes and logic analyzers to identify and resolve problems.
  • The ED8401P01QI may require specific firmware or software configurations to operate correctly. Engineers should consult Intel's documentation and software development kits (SDKs) to ensure they meet the necessary requirements for their application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ED8401P01QI Overview

Use the download button to access the ED8401P01QI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ED840, or try a keyword search, such as Switching Regulator or Controllers
