EDC10-183+ - Mini-Circuits

Description: MMIC DIRECTIONAL COUPLER

Download EDC10-183+ Model

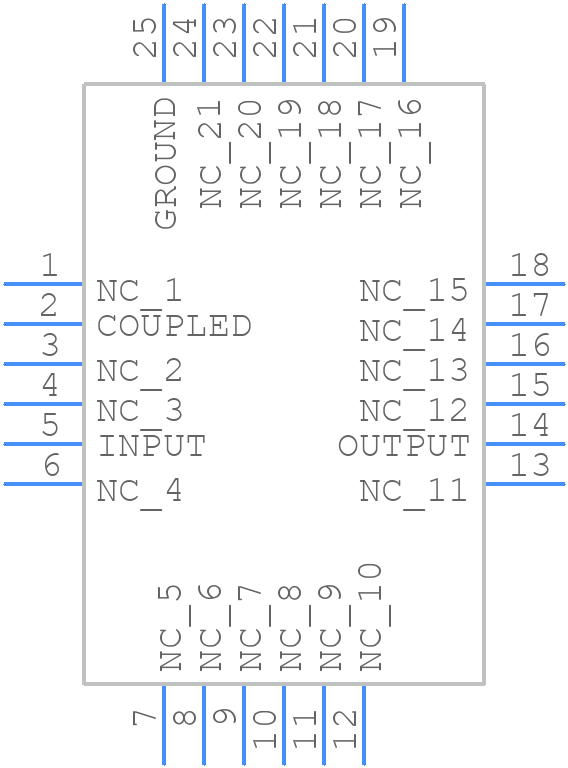

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EDC10-183+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - EDC10-183+
click to zoom
3D Models
EDC10-183+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - EDC10-183+
click to zoom

EDC10-183+ Details

  • Manufacturer Part Number:

    EDC10-183+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-10-29

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.84

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    25 dBm

  • Insertion Loss-Max:

    2.3 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    18000 MHz

  • Operating Frequency-Min:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.17

EDC10-183+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The EDC10-183+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can also use simulation software like ADS or AWR to optimize the matching network.
  • The EDC10-183+ can handle up to 1W of continuous power. However, it's recommended to derate the power handling based on the operating frequency, temperature, and other environmental factors to ensure reliable operation.
  • Yes, the EDC10-183+ can be used in a push-pull configuration to improve the output power and reduce distortion. However, it's essential to ensure that the two devices are properly matched and biased to avoid uneven current sharing.
  • The thermal resistance of the EDC10-183+ is typically around 20-30°C/W. It's essential to provide adequate heat sinking and thermal management to ensure reliable operation and prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EDC10-183+ Overview

Use the download button to access the EDC10-183+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EDC10, or try a keyword search, such as RF/Microwave Couplers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
