EDC10-50-PCB - Eaton

Description: Automotive Fuses EDC10 Family, 50 Amp, 420 Vac / 500 Vdc, 10 kA I.R., 10 x 32 mm footprint, PCB Terminal

Download EDC10-50-PCB Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this EDC10-50-PCB model

Email notifications will be applied after download.

Send part feedback

Symbol

EDC10-50-PCB - Eaton - PCB symbol

PCB Footprints

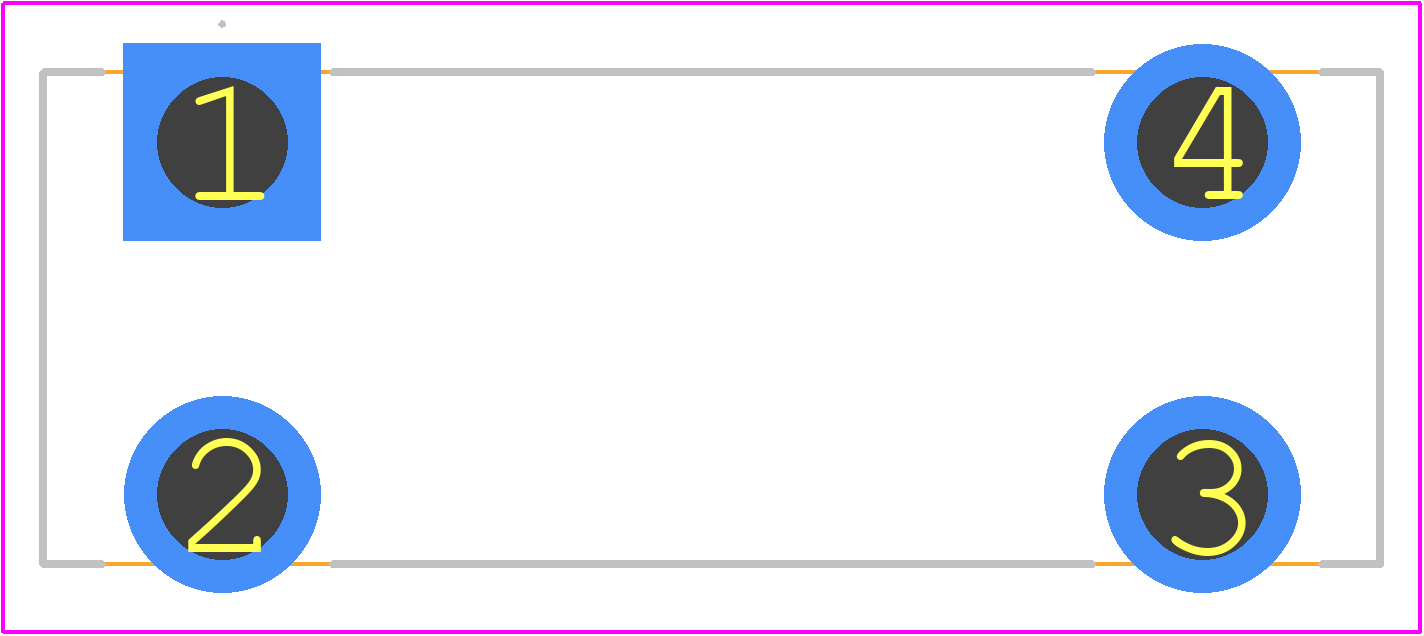

EDC10-50-PCB - Eaton PCB footprint - Other - Other - EDC10-50-PCB-1

3D Models

EDC10-50-PCB - Eaton - 3D model - Other - EDC10-50-PCB-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for EDC10-50-PCB
Part Number EDC10-50-PCB
Manufacturer Eaton
Pin Count 4
Part Category Fuse
Package Category Other
Footprint Name Other - EDC10-50-PCB-1
Released Date Mar 28, 2025
Last Modified Date Dec 2, 2025 6:29 PM UTC
Pinout / Pin List Click Here (Member Only)

EDC10-50-PCB Details

Manufacturer Part Number:
EDC10-50-PCB
Manufacturer:
Eaton Electronics
