EDS05SGRSTR04Q - TE Connectivity

Description: DIP Switch, Gold Flash Contact Plating, Black, High Temperature Nylon, Sealed, 5 Switch, -20 – 85 °C [-4 – 185 °F], Slide Actuator, ALCOSWITCH DIP EDS

Download EDS05SGRSTR04Q Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

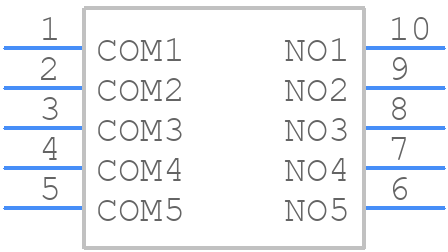

Symbol
EDS05SGRSTR04Q - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
EDS05SGRSTR04Q - TE Connectivity PCB footprint - Other - Other - EDS05SGRSTR04Q-1
click to zoom
3D Models
EDS05SGRSTR04Q - TE Connectivity - 3D model - Other - EDS05SGRSTR04Q-1
click to zoom

EDS05SGRSTR04Q Details

  • Manufacturer Part Number:

    EDS05SGRSTR04Q

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    6 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.1

  • Actuator Color:

    WHITE

  • Actuator Type:

    SLIDE TYPE

  • Body Height:

    3.4 mm

  • Body Length or Diameter:

    12.6 mm

  • Center Contact Plating:

    GOLD OVER NICKEL

  • Contact Current(AC)-Max:

    0.025 A

  • Contact Current(DC)-Max:

    0.025 A

  • Contact Voltage(DC)-Max:

    24 V

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    GOLD OVER NICKEL

  • Housing Material:

    NYLON

  • Mounting Feature:

    PANEL MOUNT

  • Number of Positions:

    5

  • Number of Switch Sections:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR

  • Sealing:

    TAPE SEALED

  • Surface Mount:

    NO

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

EDS05SGRSTR04Q Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application notes.
  • Yes, the EDS05SGRSTR04Q is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration, as per IEC 61373 Cat. 2.
  • Yes, the EDS05SGRSTR04Q has a IP67 rating, making it suitable for outdoor use and able to withstand exposure to water and dust.
  • The maximum operating temperature range for the EDS05SGRSTR04Q is -40°C to 125°C, as specified in the datasheet.
  • No, the EDS05SGRSTR04Q is designed for use with wire sizes up to 0.5 mm². Using a larger wire size may compromise the connector's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EDS05SGRSTR04Q Overview

Use the download button to access the EDS05SGRSTR04Q schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EDS05, or try a keyword search, such as DIP Switches

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
