EDS06SGNNTR04Q - TE Connectivity

Description: DIP Switch, Gold Flash Contact Plating, Black, High Temperature Nylon, 6 Switch, -20 – 85 °C [-4 – 185 °F], Slide Actuator, ALCOSWITCH DIP EDS

Download EDS06SGNNTR04Q Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

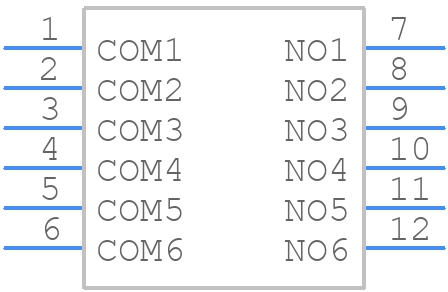

Symbol
EDS06SGNNTR04Q - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
EDS06SGNNTR04Q - TE Connectivity PCB footprint - Other - Other - EDS06SGNNTR04Q
click to zoom
3D Models
EDS06SGNNTR04Q - TE Connectivity - 3D model - Other - EDS06SGNNTR04Q
click to zoom

EDS06SGNNTR04Q Details

  • Manufacturer Part Number:

    EDS06SGNNTR04Q

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    6 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5.8

  • Actuator Color:

    WHITE

  • Actuator Type:

    SLIDE TYPE

  • Body Height:

    3.8 mm

  • Body Length or Diameter:

    15.14 mm

  • Center Contact Plating:

    GOLD OVER NICKEL

  • Contact Current(AC)-Max:

    0.025 A

  • Contact Current(DC)-Max:

    0.025 A

  • Contact Voltage(DC)-Max:

    24 V

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    GOLD OVER NICKEL

  • Housing Material:

    NYLON

  • Mounting Feature:

    PANEL MOUNT

  • Number of Positions:

    6

  • Number of Switch Sections:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR

  • Surface Mount:

    NO

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

EDS06SGNNTR04Q Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lb-in to 1.06 lb-in).
  • Yes, the connector is suitable for outdoor use, as it has an IP67 rating, which means it can withstand dust and water immersion up to 1 meter for 30 minutes.
  • The operating temperature range of the EDS06SGNNTR04Q connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the EDS06SGNNTR04Q connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the EDS06SGNNTR04Q connector meets the requirements of the automotive industry, including ISO 16750-2 and IEC 61946 standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EDS06SGNNTR04Q Overview

Use the download button to access the EDS06SGNNTR04Q schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EDS06, or try a keyword search, such as DIP Switches
