EDS06SGRSTR04Q - TE Connectivity

Description: DIP Switch, Gold Flash Contact Plating, Black, High Temperature Nylon, Sealed, 6 Switch, -20 – 85 °C [-4 – 185 °F], Slide Actuator, ALCOSWITCH DIP EDS

Download EDS06SGRSTR04Q Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

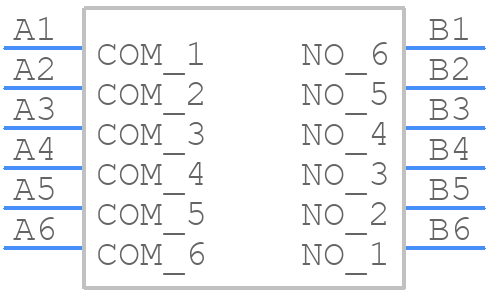

Symbol
EDS06SGRSTR04Q - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
EDS06SGRSTR04Q - TE Connectivity PCB footprint - Other - Other - EDS06SGRSTR04Q-3
click to zoom
3D Models
EDS06SGRSTR04Q - TE Connectivity - 3D model - Other - EDS06SGRSTR04Q-3
click to zoom

EDS06SGRSTR04Q Details

  • Manufacturer Part Number:

    EDS06SGRSTR04Q

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    6 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5.8

  • Actuator Color:

    WHITE

  • Actuator Type:

    SLIDE TYPE

  • Body Height:

    3.4 mm

  • Body Length or Diameter:

    15.14 mm

  • Center Contact Plating:

    GOLD OVER NICKEL

  • Contact Current(AC)-Max:

    0.025 A

  • Contact Current(DC)-Max:

    0.025 A

  • Contact Voltage(DC)-Max:

    24 V

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    GOLD OVER NICKEL

  • Housing Material:

    NYLON

  • Mounting Feature:

    PANEL MOUNT

  • Number of Positions:

    6

  • Number of Switch Sections:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR

  • Sealing:

    TAPE SEALED

  • Surface Mount:

    NO

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

EDS06SGRSTR04Q Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the terminals.
  • Yes, the EDS06SGRSTR04Q is designed to withstand high-vibration environments. The connector's rugged design and secure screw terminals ensure reliable connections even in harsh conditions. However, it's essential to follow the recommended torque and installation procedures to ensure optimal performance.
  • The EDS06SGRSTR04Q is designed for indoor use, but it can be used in outdoor applications with proper protection. The connector's materials are resistant to moisture and humidity, but it's essential to provide additional protection, such as sealing or conformal coating, to ensure reliability in outdoor environments.
  • The EDS06SGRSTR04Q has an operating temperature range of -40°C to 125°C. However, it's essential to note that the connector's performance may degrade at extreme temperatures, and it's recommended to follow the recommended operating temperature range for optimal performance.
  • The EDS06SGRSTR04Q is designed for wire sizes between 0.5 mm² and 2.5 mm². While it may be possible to use the connector with smaller or larger wire sizes, it's not recommended as it may affect the connector's performance and reliability. It's essential to follow the recommended wire size range for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EDS06SGRSTR04Q Overview

Use the download button to access the EDS06SGRSTR04Q schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EDS06, or try a keyword search, such as DIP Switches

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
