EDS08SGRSTR04Q footprint, schematic symbol and 3D model by TE Connectivity

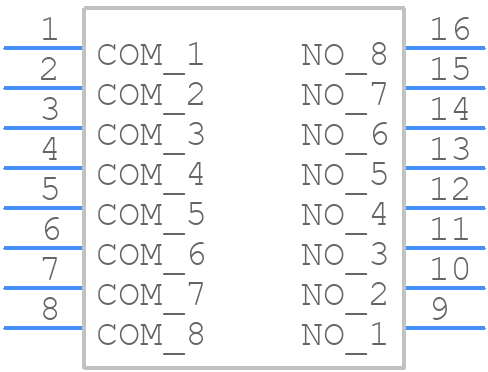

Symbol

click to zoom

PCB Footprints

EDS08SGRSTR04Q - TE Connectivity PCB footprint - Other - Other - EDS08SGRSTR04Q-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EDS08SGRSTR04Q
Part Number EDS08SGRSTR04Q
Manufacturer TE Connectivity
Pin Count 16
Part Category Switch
Package Category Other
Footprint Name Other - EDS08SGRSTR04Q-2
Released Date Feb 9, 2022
Last Modified Date Apr 5, 2024 12:33 PM UTC
Pinout / Pin List Click Here (Member Only)

EDS08SGRSTR04Q Details

Manufacturer Part Number:
EDS08SGRSTR04Q
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Factory Lead Time:
6 Weeks, 6 Days
Manufacturer:
TE Connectivity
YTEOL:
3
Actuator Color:
WHITE
Actuator Type:
SLIDE TYPE
Body Height:
3.4 mm
Body Length or Diameter:
20.22 mm
Center Contact Plating:
GOLD OVER NICKEL
Contact Current(AC)-Max:
0.025 A
Contact Current(DC)-Max:
0.025 A
Contact Voltage(DC)-Max:
24 V
End Contact Material:
COPPER ALLOY
End Contact Plating:
GOLD OVER NICKEL
Housing Material:
NYLON
Mounting Feature:
PANEL MOUNT
Number of Positions:
8
Number of Switch Sections:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Packing Method:
TR
Sealing:
TAPE SEALED
Surface Mount:
NO
Switch Function:
SPST
Switch Type:
SLIDE DIP SWITCH

EDS08SGRSTR04Q Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals of EDS08SGRSTR04Q is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application notes.
Yes, the EDS08SGRSTR04Q is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration, as per IEC 61373 Cat. 2.
Yes, the EDS08SGRSTR04Q has a IP67 rating, making it suitable for outdoor use and able to withstand exposure to water and dust.
The EDS08SGRSTR04Q has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications.
No, the EDS08SGRSTR04Q is designed for use with wire gauges 24 AWG to 30 AWG. Using a larger wire gauge may not ensure reliable connections.
