EDS10SGNNTR04Q footprint, schematic symbol and 3D model by TE Connectivity

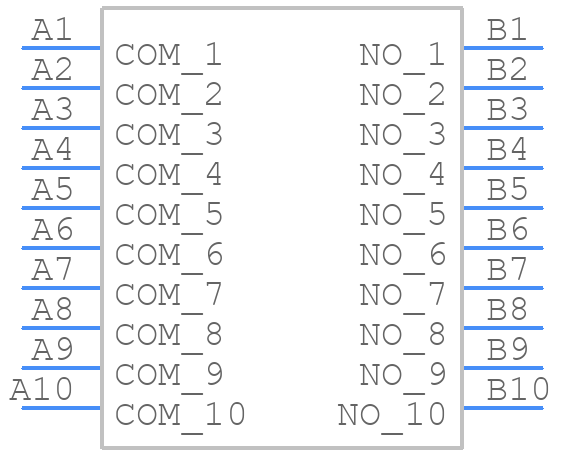

Symbol

click to zoom

PCB Footprints

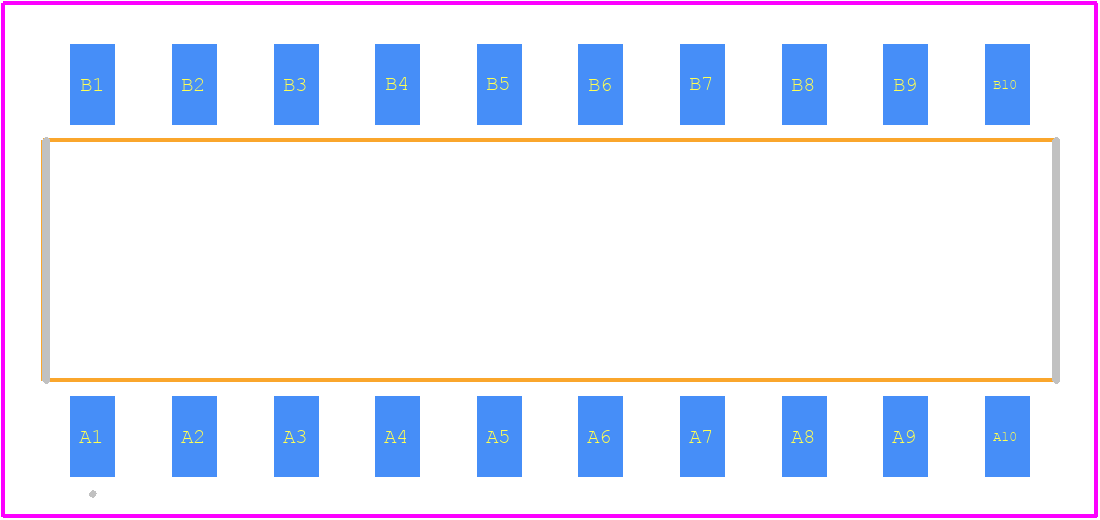

EDS10SGNNTR04Q - TE Connectivity PCB footprint - Other - Other - EDS10SGNNTR04Q-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EDS10SGNNTR04Q
Part Number EDS10SGNNTR04Q
Manufacturer TE Connectivity
Pin Count 20
Part Category Switch
Package Category Other
Footprint Name Other - EDS10SGNNTR04Q-2
Released Date Apr 21, 2022
Last Modified Date Dec 15, 2024 11:00 PM UTC
Pinout / Pin List Click Here (Member Only)

EDS10SGNNTR04Q Details

Manufacturer Part Number:
EDS10SGNNTR04Q
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Factory Lead Time:
6 Weeks, 6 Days
Manufacturer:
TE Connectivity
YTEOL:
5.8
Actuator Color:
WHITE
Actuator Type:
SLIDE TYPE
Body Height:
3.8 mm
Body Length or Diameter:
25.3 mm
Center Contact Plating:
GOLD OVER NICKEL
Contact Current(AC)-Max:
0.025 A
Contact Current(DC)-Max:
0.025 A
Contact Voltage(DC)-Max:
24 V
End Contact Material:
COPPER ALLOY
End Contact Plating:
GOLD OVER NICKEL
Housing Material:
NYLON
Mounting Feature:
PANEL MOUNT
Number of Positions:
10
Number of Switch Sections:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Packing Method:
TR
Surface Mount:
NO
Switch Function:
SPST
Switch Type:
SLIDE DIP SWITCH

EDS10SGNNTR04Q Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals of EDS10SGNNTR04Q is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application notes.
Yes, the EDS10SGNNTR04Q is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration, as per IEC 61373 Cat. 2.
Yes, the EDS10SGNNTR04Q has a IP67 rating, making it suitable for outdoor use and able to withstand exposure to water and dust.
The EDS10SGNNTR04Q has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications.
No, the EDS10SGNNTR04Q is designed for use with wire gauges 24 AWG to 30 AWG. Using a larger wire gauge may not provide a reliable connection.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

EDS10SGNNTR04Q Overview

Use the download button to access the EDS10SGNNTR04Q schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like EDS10, or try a keyword search, such as DIP Switches
