EDSP04SGLNNTU04 - TE Connectivity

Description: DIP Switch, Gold Flash Contact Plating, Black, High Temperature Nylon, 4 Switch, -20 – 85 °C [-4 – 185 °F], Piano (Side Actuated), ALCOSWITCH DIP EDSP

Download EDSP04SGLNNTU04 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

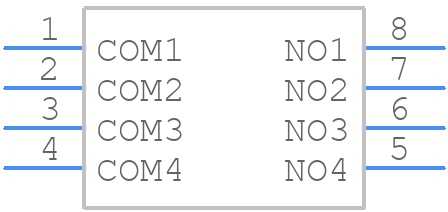

EDSP04SGLNNTU04 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
EDSP04SGLNNTU04 - TE Connectivity PCB footprint - Other - Other - EDSP04SGLNNTU04-3
click to zoom
3D Models
EDSP04SGLNNTU04 - TE Connectivity - 3D model - Other - EDSP04SGLNNTU04-3
click to zoom

EDSP04SGLNNTU04 Details

  • Manufacturer Part Number:

    EDSP04SGLNNTU04

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    6 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.1

  • Actuator Color:

    WHITE

  • Actuator Type:

    PIANO TYPE

  • Body Height:

    5 mm

  • Body Length or Diameter:

    10.06 mm

  • Center Contact Plating:

    GOLD OVER NICKEL

  • Contact Current(AC)-Max:

    0.025 A

  • Contact Current(DC)-Max:

    0.025 A

  • Contact Voltage(DC)-Max:

    24 V

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    GOLD OVER NICKEL

  • Housing Material:

    NYLON

  • Mounting Feature:

    PANEL MOUNT

  • Number of Positions:

    4

  • Number of Switch Sections:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Function:

    SPST

  • Switch Type:

    PIANO DIP SWITCH
