EDSP06SGLNNTU04 footprint, schematic symbol and 3D model by TE Connectivity

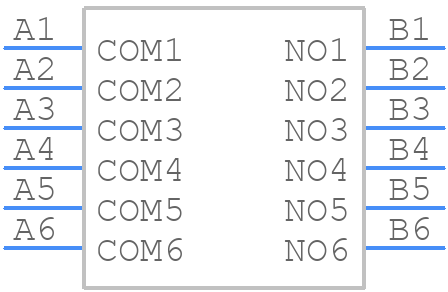

Symbol

click to zoom

PCB Footprints

EDSP06SGLNNTU04 - TE Connectivity PCB footprint - Other - Other - EDSP06SGLNNTU04-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EDSP06SGLNNTU04
Part Number EDSP06SGLNNTU04
Manufacturer TE Connectivity
Pin Count 12
Part Category Switch
Package Category Other
Footprint Name Other - EDSP06SGLNNTU04-2
Released Date Dec 10, 2024
Last Modified Date Dec 15, 2024 10:37 PM UTC
Pinout / Pin List Click Here (Member Only)

EDSP06SGLNNTU04 Details

Manufacturer Part Number:
EDSP06SGLNNTU04
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Factory Lead Time:
6 Weeks, 6 Days
Manufacturer:
TE Connectivity
YTEOL:
5.8
Actuator Color:
WHITE
Actuator Type:
PIANO TYPE
Body Height:
5 mm
Body Length or Diameter:
15.14 mm
Center Contact Plating:
GOLD OVER NICKEL
Contact Current(AC)-Max:
0.025 A
Contact Current(DC)-Max:
0.025 A
Contact Voltage(DC)-Max:
24 V
End Contact Material:
COPPER ALLOY
End Contact Plating:
GOLD OVER NICKEL
Housing Material:
NYLON
Mounting Feature:
PANEL MOUNT
Number of Positions:
6
Number of Switch Sections:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Packing Method:
TUBE
Surface Mount:
NO
Switch Function:
SPST
Switch Type:
PIANO DIP SWITCH

EDSP06SGLNNTU04 Frequently Asked Questions (FAQs)

TE Connectivity provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal and mechanical stress on the connector.
To ensure reliable mating and unmating, follow the recommended mating sequence, apply the specified mating force, and use the correct connector alignment. Additionally, ensure the connector is properly cleaned and inspected before mating.
While the datasheet provides the operating temperature range, it's essential to note that the maximum operating temperature may vary depending on the specific application and environment. It's recommended to consult with TE Connectivity or a qualified engineer to determine the suitable operating temperature range for your specific use case.
While the EDSP06SGLNNTU04 is designed to be robust, it's crucial to evaluate its suitability for high-vibration or harsh environments. TE Connectivity may provide additional information or recommendations for such applications. It's recommended to consult with their technical support or a qualified engineer to determine the connector's feasibility in your specific environment.
The recommended torque values for the EDSP06SGLNNTU04 connector can be found in the TE Connectivity datasheet or application notes. It's essential to follow these guidelines to ensure proper mating and to prevent damage to the connector or PCB.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

EDSP06SGLNNTU04 Overview

Use the download button to access the EDSP06SGLNNTU04 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like EDSP0, or try a keyword search, such as DIP Switches
